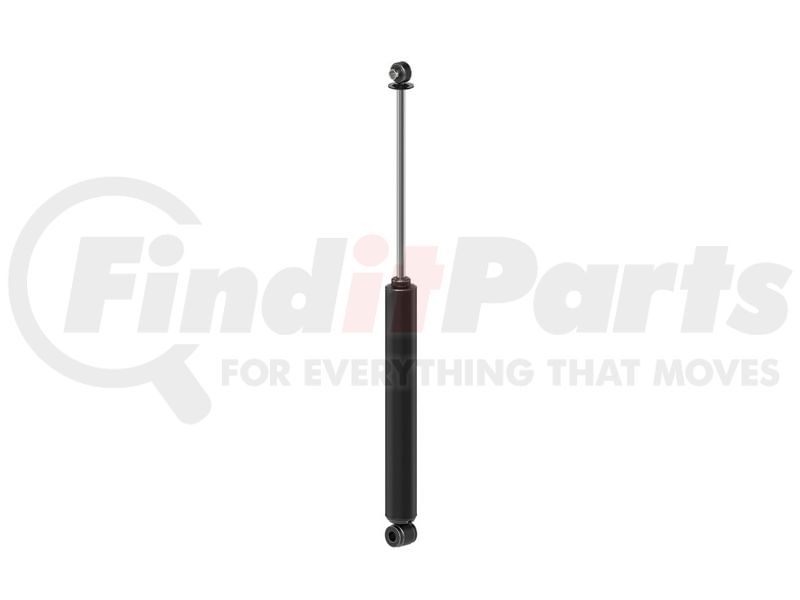

Name: Monroe SC2967 Magnum Steering Damper
SKU: sc2967
Price: 42.49 USD
Availability: InStock

MONROE part description

Product Description

Magnum Steering Damper

Features & Benefits

REDUCES VIBRATION -- Ideal for trucks, vans, SUVs, and CUVs, it helps reduce vibrations that travel through the steering system before they get to the driver to improve control and cut down on driver fatigue in all driving conditions
CONSISTENT PERFORMANCE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
STRONG AND DURABLE -- Sintered iron piston and .50-in. nitrocarburized piston rod for enhanced durability and long service life
EXCEPTIONAL HANDLING -- Full displaced valving delivers better valving range on both compression and extension cycles for consistent performance
LONGER SERVICE LIFE -- Self-lubricating fluid seal retains gas without excessive wear or friction
MOUNTS HORIZONATALLY -- Micro-cellular gas design allows the unit to be mounted horizontally without impacting performance for improved steering control

Product Attributes

Compressed Length	16.11 IN
Extended Length	27.79 in
Shock Absorber Body End Measuring Point	Center of Loop
Travel Length	11.68 in
Body Diameter	1.86 IN
Lower Mount Type	Loop Bushing Mount - 5/8" Bushing ID X 1-5/16" Bushing OAL
Lower Mount Code	L1
Upper Mount Type	Loop Bushing And Sleeve Mount - 12mm Sleeve ID X 38.1mm Sleeve OAL
Upper Mount Code	LS26
Dust Shield Included	No
Dust Shield Material	N/A
Gas Charged	No
Parts Pack(s)	P01385
Shock Absorber Rod End Measuring Point	Center of Loop
Adjustable Damping	No
Internal Construction Type	Twin Tube
Color	Black
Finish	Painted
9804	Yes
Shaft Diameter	16 MM
Part Description	Steering Damper
Compressed Length	409.2 MM
Extended Length	705.9 MM
Travel Length	296.7 MM
Body Diameter	47.2 MM

Additional Information

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708949900
Harmonized Tariff Code (Schedule B)	8708947550
Harmonized Tariff Code (HTS)	8708947550
UPC	00048598023995
VMRS Code	015004022
UNSPSC	25174202

Part Interchanges

MONROE SC2967 Cross Reference

We have 2 alternatives for the SC2967 by MONROE:

Fits Vehicles

Ford F-600 Super Duty (2020-2022)
Ford F-550 Super Duty (2011-2023)
Ford F-450 Super Duty (2011-2023)
Ford F-250 Super Duty (2011-2024)
Ford F-350 Super Duty (2011-2024)
