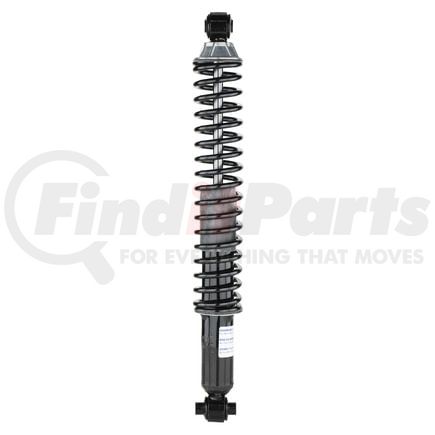

(888) 312-8812 Login SignupMONROE 58644 Load Adjusting Suspension Shock Absorber and Coil Spring Assembly Pack of 2

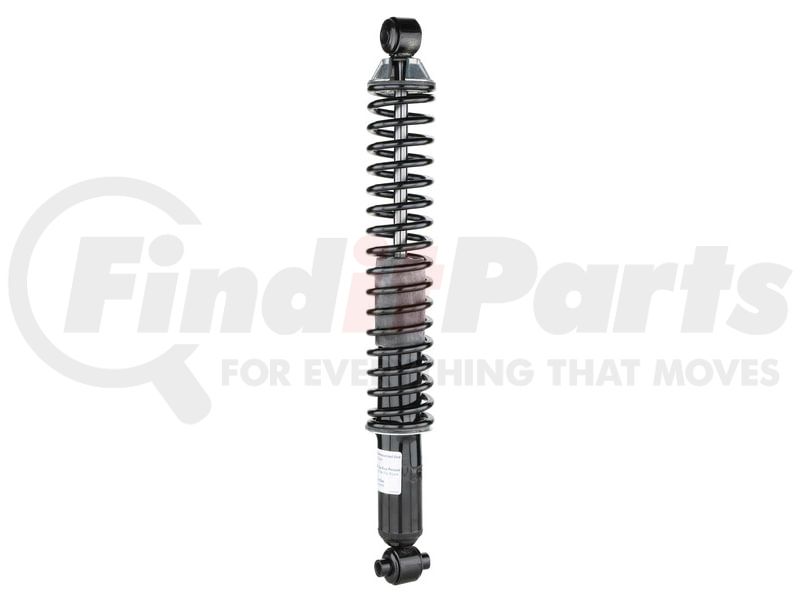

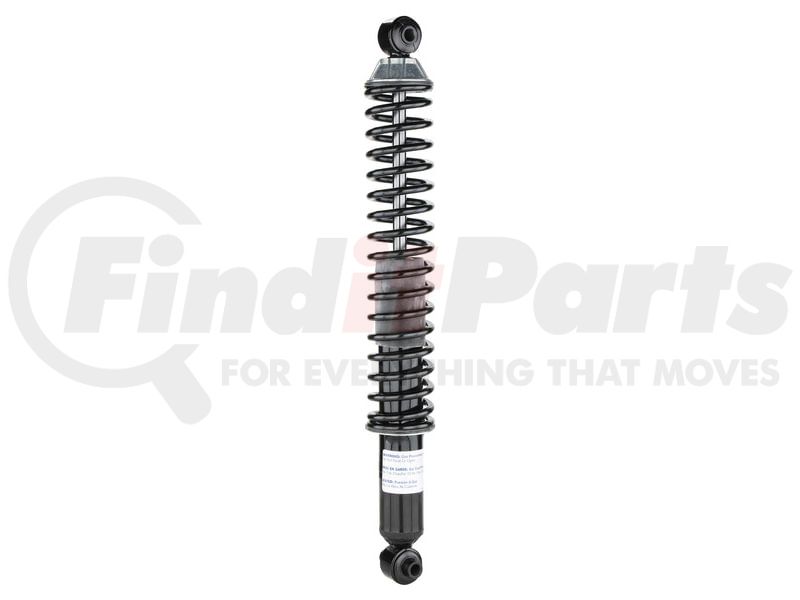

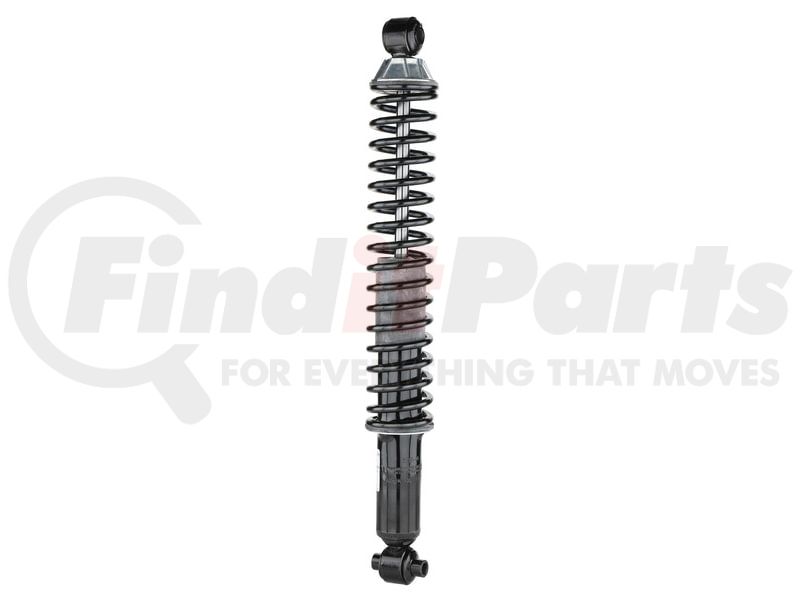

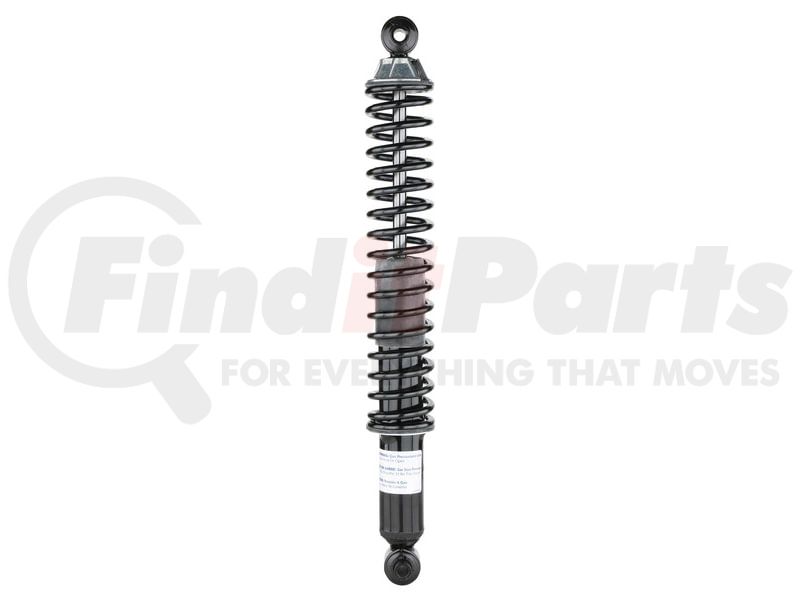

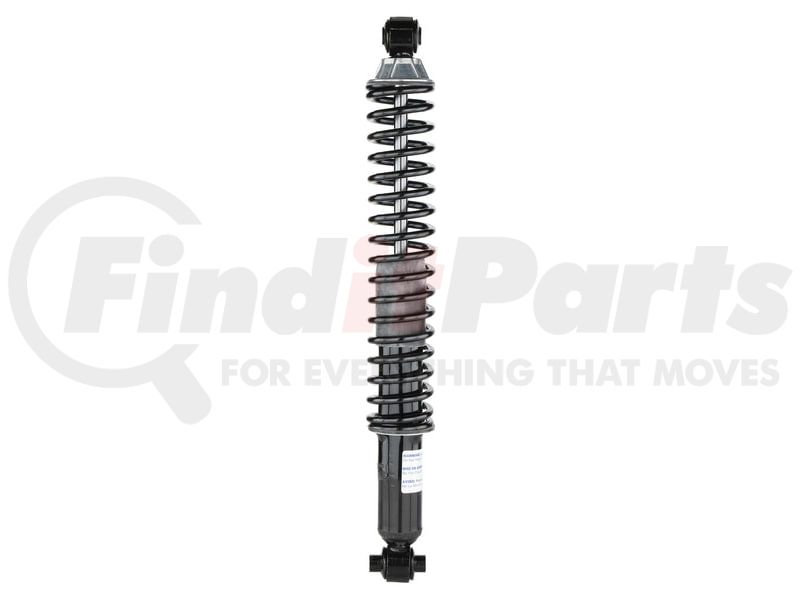

Tap to view 5 more
SHIPS MONDAY
MSRP: $304.59
$16399
Save $140.60
Limited availability at this price!
In Stock
Get it by Friday, Jan 23
MONROE 58644 Part Description
Manufacturer
Product Description

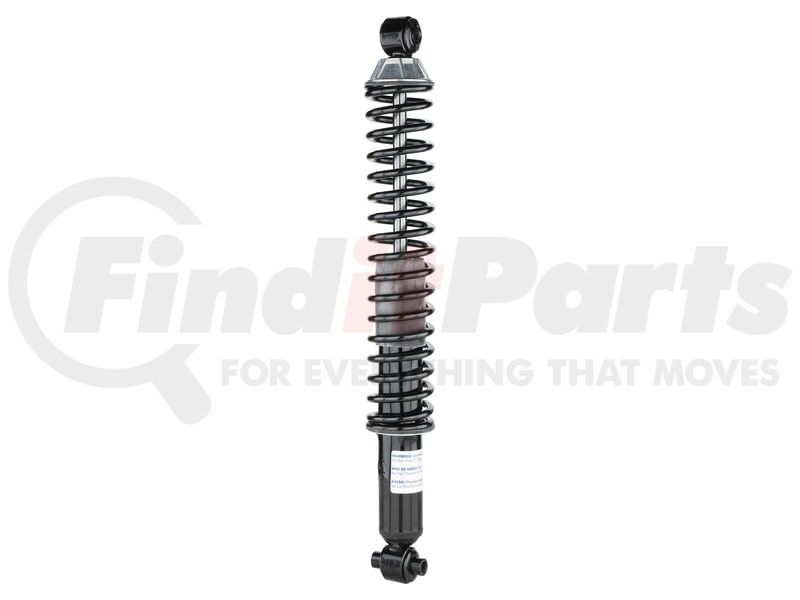

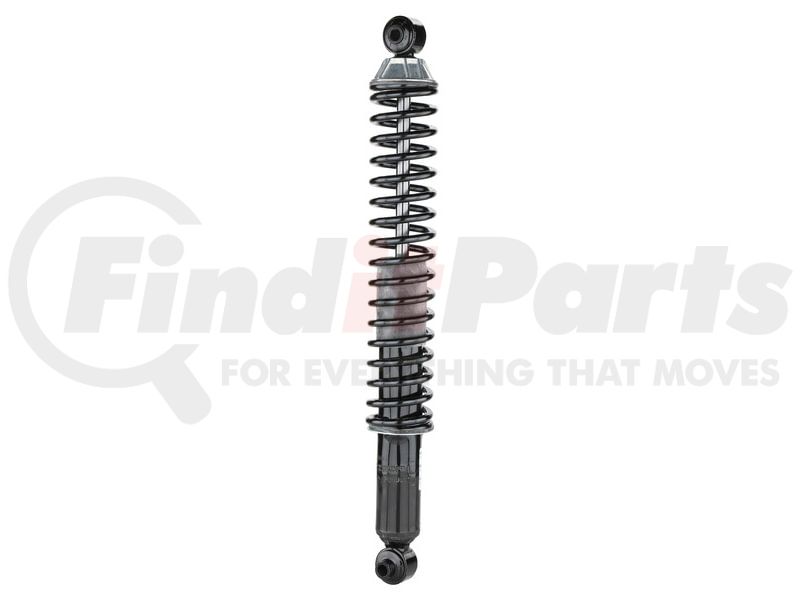

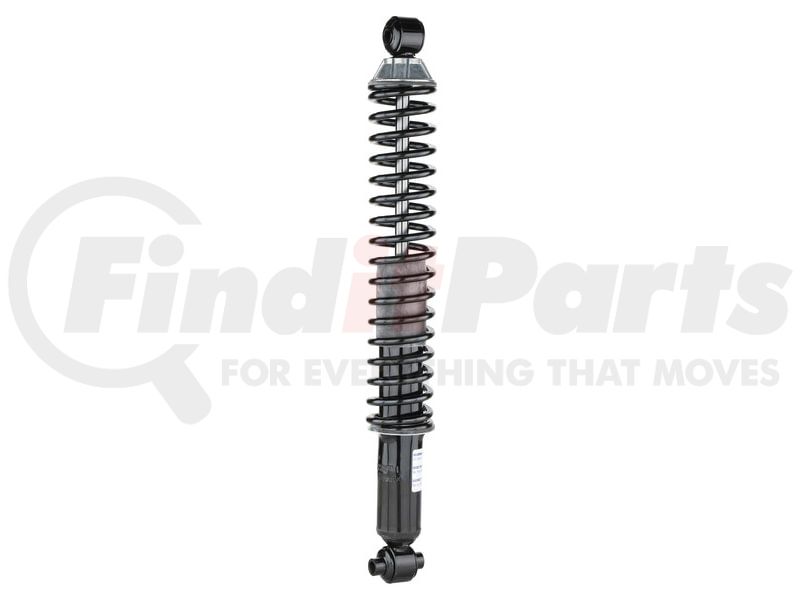

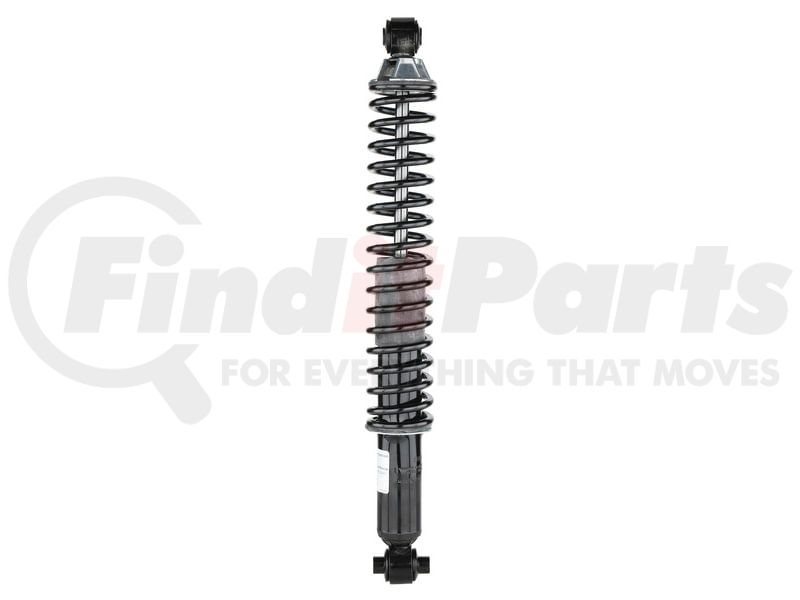

Load Adjusting Suspension Shock Absorber and Coil Spring Assembly Pack of 2
Features & Benefits
- REDUCES SAG UNDER LOAD -- Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner's manual)
- EXCEPTIONAL HANDLING -- Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
- LONGER SERVICE LIFE -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
MONROE 58644 Specifications
Product Attributes
| Lower Mount Code | LS41 |
| Upper Mount Code | LS40 |
| Includes Bump Stop | No |
| Hydraulic Lockout | No |
| Parts Pack(s) | None |
| Part Description | Shock Absorber and Coil Spring Assembly |
| Compressed Length | 14.73 IN |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Extended Length | 23.82 in |
| Internal Rebound Bumper | No |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 2.1/4" Sleeve OAL |
| Travel Length | 9.09 IN |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.11/16" Sleeve OAL |
| Compressed Length | 374.1 MM |
| Extended Length | 605 MM |
| Travel Length | 9.09 in |
| Travel Length | 230.9 MM |
| Upper Mount Code | LS40 |
| Dust Shield Included | Yes |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598013170 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 58644 Cross References
| Brand | Part Number |
|---|---|
| 58644ST, FV6Z14A318BEA | |
| Chevrolet | 15058616, 15098143, 15098725, 15098726, 15098727, 15125520, 15125521, 15125540, 15159038, 15159648, 15172340, 15172341, 15172342, 15195073, 15195074, 15198311, 15198893, 15198894, 15206892, 15746779, 15789561, 15789588, 15789589, 15789590, 15789591, 15881662, 15885746, 15894447, 15894449, 19177207, 19177778, 19177781, 19177786, 19179512, 19180749, 19180752, 19180754, 19180755, 19180774, 19180776, 25820699, 25820704 |
| GMC | 15058616, 15058617, 15098143, 15098725, 15098726, 15098727, 15125520, 15125521, 15159038, 15159648, 15172340, 15172341, 15172342, 15195073, 15195074, 15198311, 15198893, 15198894, 15206892, 15746779, 15789559, 15789588, 15789589, 15789590, 15789591, 15881662, 15894447, 19177207, 19177778, 19177781, 19177786, 19179512, 19180749, 19180752, 19180754, 19180755, 19180774, 19180776, 25820699, 25820704 |
| NAPA Shocks | 58644 |
MONROE 58644 Fits Vehicles
- Chevrolet Trailblazer EXT (2002-2006)
- GMC Envoy XL (2002-2006)
- GMC Envoy XUV (2004-2005)
- GMC Envoy (2002-2009)
- Chevrolet Trailblazer (2002-2009)
