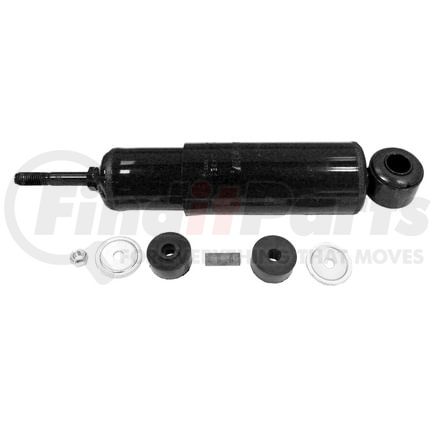

Name: Monroe 74467 Magnum Suspension Shock Absorber
SKU: 74467
Price: 92.49 USD
Availability: InStock

MONROE part description

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

FOR HARDWORKING TRANSIT BUSES -- Designed to handle the demands of high mileage and severe use transit buses
CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/4-in. reserve tube holds more fluid to improve performance (when required)
EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore allows valve finetuning by allowing more hydraulic fluid to dissipate heat for better control
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (when required)
LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

Product Attributes

9791	S6
9789	LS65
Dust Shield Included	Yes
9783	No
9908	No
9792	Yes
Part Description	Shock Absorber
Internal Construction Type	Twin Tube
9786	3.15 IN
Adjustable Damping	No
Color	Black
Finish	Painted
Shock Absorber Bore Size	1-3/4 IN
Shaft Diameter	18 MM
Body Diameter	2.75 IN
Compressed Length	12.86 IN
Dust Shield Material	Metal
Extended Length	20.06 in
Gas Charged	No
Lower Mount Type	Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Parts Pack(s)	None
Shock Absorber Body End Measuring Point	Base of Stem
Shock Absorber Rod End Measuring Point	Center of Loop
Travel Length	7.2 in
Upper Mount Type	Loop Bushing and Sleeve Mount - 1" Sleeve ID X 2" Sleeve OAL
Compressed Length	326.6 MM
Extended Length	509.5 MM
Travel Length	182.9 MM
Body Diameter	69.9 MM
9786	80 MM
9801	44.5 MM
9801	1.75 IN
Adjustable Damping	No

Additional Information

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598082305
VMRS Code	016008003
UNSPSC	25172011

Part Interchanges

MONROE 74467 Cross Reference

We have 6 alternatives for the 74467 by MONROE:

Fits Vehicles

Gillig Low Floor (1998-2009)
