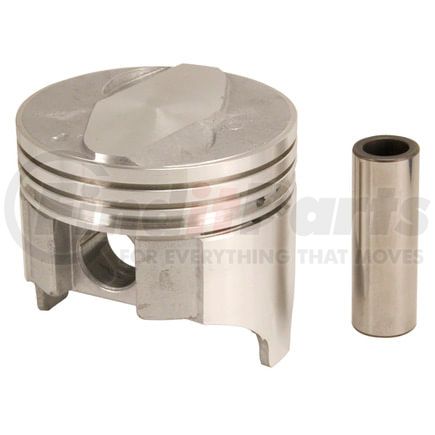

Sealed Power 402P - Sealed Power 402P Engine Piston Set
- Part Number
- 402P
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power 402P Engine Piston Set
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
SEALED POWER part description
Product Description
Engine Piston Set
Application Summary
1972-1970 GM V8 402CI 6.6L Chevrolet; 1972-1970 GMT L/D V8 402CI 6.6L Chevrolet
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Utilizes ISO & QS certified manufacturing
- Meets or exceeds OEM specifications
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9894 IN |
| Piston Pin Outside Diameter | 25.131 MM |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.1250 IN |
| Bore Diameter | 104.8 MM |
| Piston Material | Cast Aluminum |
| 9607 | 1.732 IN |
| Head Illustration | 3 |
| Head Type | Crowned Head |
| Minimum Clearance | 0.0015 @ 2.560 from top of head |
| Part Description | Engine Piston Set |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00724956350018 |
Part Interchanges
- 402P
- Badger P573L-STD
- Badger P573L
- General Motors 3993847
- General Motors 3993849
- General Motors 3993861
- General Motors 3878231
- General Motors 3969976
- General Motors 3969982
- General Motors 3993848
- General Motors 3993850
- General Motors 3993862
- General Motors 3969975
- General Motors 3969981
- TRW Steering and Suspension Parts L3171F
- Clevite TC3173
- Clevite 91445
- Silvolite 1445
- Ertel 980P
- Mcquay-Norris P2094AX
- Mcquay-Norris P2166AX
- Mcquay-Norris P2165AX
- Z8365L STD
- Z8365L
- Dana Commercial Vehicle Service Parts 224-2877
- Badger P573LSTD
- Sealed Power 8445P
- Dana Commercial Vehicle Service Parts 2242877
Fits Vehicles
- Chevrolet Townsman (1970-1972)
- Chevrolet Nova (1970-1972)
- Chevrolet Monte Carlo (1970-1972)
- Chevrolet Kingswood (1970-1972)
- Chevrolet K30 Pickup (1970-1972)
- Chevrolet K20 Suburban (1970-1972)
- Chevrolet K20 Pickup (1970-1972)
- Chevrolet K10 Suburban (1970-1972)
- Chevrolet K10 Pickup (1970-1972)
- Chevrolet Impala (1970-1972)
- Chevrolet El Camino (1970-1972)
- Chevrolet Chevelle (1970-1972)
- Chevrolet Caprice (1970-1972)
- Chevrolet Camaro (1970-1972)
- Chevrolet C30 Pickup (1970-1972)
- Chevrolet C20 Suburban (1970-1972)
- Chevrolet C20 Pickup (1970-1972)
- Chevrolet C10 Suburban (1970-1972)
- Chevrolet C10 Pickup (1970-1972)
- Chevrolet Brookwood (1970-1972)
- Chevrolet Biscayne (1970-1972)
- Chevrolet Bel Air (1970-1972)
- Pontiac Strato-Chief (1970)
- Pontiac Parisienne (1970)
- Pontiac Laurentian (1970)
- Chevrolet Estate (1970)
- Pontiac Acadian (1970-1971)
- GMC Sprint (1971-1972)
- GMC K35/K3500 Pickup (1970-1972)
- GMC K25/K2500 Suburban (1970-1972)
- GMC K25/K2500 Pickup (1970-1972)
- GMC K15/K1500 Suburban (1970-1972)
- GMC K15/K1500 Pickup (1970-1972)
- GMC C35/C3500 Pickup (1970-1972)
- GMC C25/C2500 Suburban (1970-1972)
- GMC C25/C2500 Pickup (1970-1972)
- GMC C15/C1500 Suburban (1970-1972)
- GMC C15/C1500 Pickup (1970-1972)
