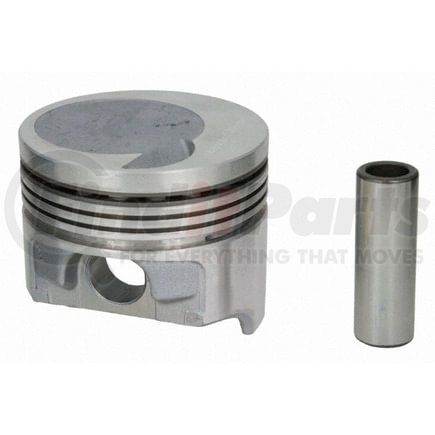

Sealed Power H604CP40 - Sealed Power H604CP 40 Engine Piston Set
- Part Number
- H604CP40
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power H604CP 40 Engine Piston Set
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Helps improve cylinder sealing for less blow-by
- Retains standard ring gaps in top groove
- DUROSHIELD(R) skirt-coated piston
- DUROSHIELD® skirt-coated piston
- Moly-graphite coating extends engine life
- Reduces friction for higher fuel economy
- Prevents damage from inadequate lubrication on start-up
Product Attributes
| Oversized | Yes |
| Top Compression Ring Thickness | 0.0937 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9894 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.2500 IN |
| Piston Material | Hypereutectic |
| 9607 | 2.140 IN |
| Head Illustration | 125 |
| Head Type | Recessed Head .100 deep w/1 valve relief; DUROSHIELD~ skirt coated piston |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Oversized Amount | 0.040 IN |
| Part Description | Engine Piston |
| Third Compression Ring Thickness | 0.0781 IN |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 25.131 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046273535 |
Part Interchanges
- Badger P574H-040
- Badger P574-040
- Clevite TC2741.040
- Clevite 9-3401D40
- Silvolite 3401D40
- 3401D.040
- Ertel 8166AP40
- Z8173E 040
- Dana Commercial Vehicle Service Parts TC2741.040
- Dana Commercial Vehicle Service Parts 224-2741.040
- Badger P574040
- Badger P574H040
- Silvolite 3401D040
- Clevite 93401D40
- Clevite TC2741040
- Zollner Z8173E040
- Dana Commercial Vehicle Service Parts 2242741040
- Dana Commercial Vehicle Service Parts TC2741040
Fits Vehicles
- GMC P6000 (1987, 1989-1990, 1992-1996)
- Chevrolet P60 (1986-1990, 1992-1996)
- GMC P6500 (1992-1996)
- Chevrolet P6000 (1992-1996)
- GMC B7 (1994-1997)
- GMC B6000 (1985)
- GMC C7500 Topkick (1997-1998)
- GMC C6500 Topkick (1997-1998)
- Chevrolet B7 (1994-1998)
- Chevrolet B60 (1985)
- Chevrolet C7500 Kodiak (1997-1998)
- Chevrolet C6500 Kodiak (1997-1998)
- GMC C7000 Topkick (1990-1996)
- GMC C6000 Topkick (1990-1996)
- Chevrolet C70 Kodiak (1990-1996)
- Chevrolet C60 Kodiak (1990-1996)
- Chevrolet C50 (1986)
- GMC C7000 (1985-1990)
- GMC C6000 (1985, 1990)
- Chevrolet C70 (1985-1990)
- Chevrolet C60 (1985, 1990)
