MONROE part description

Product Description

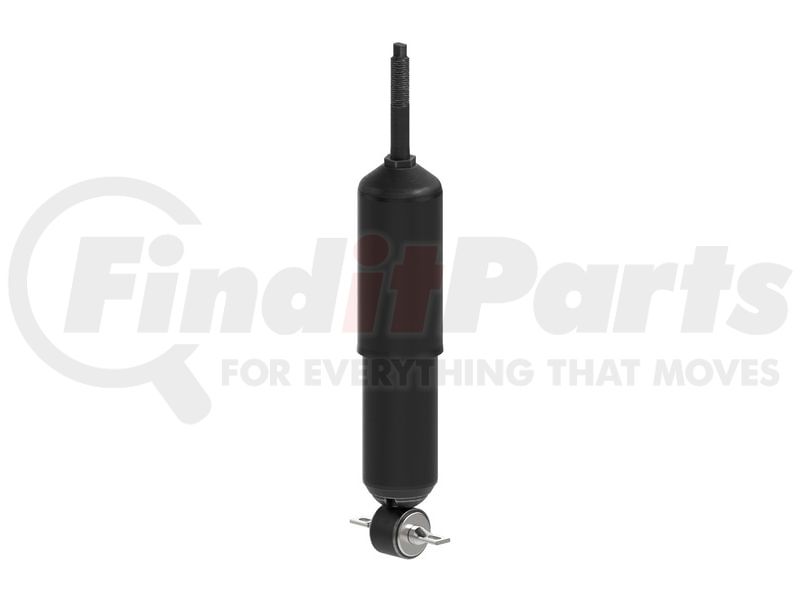

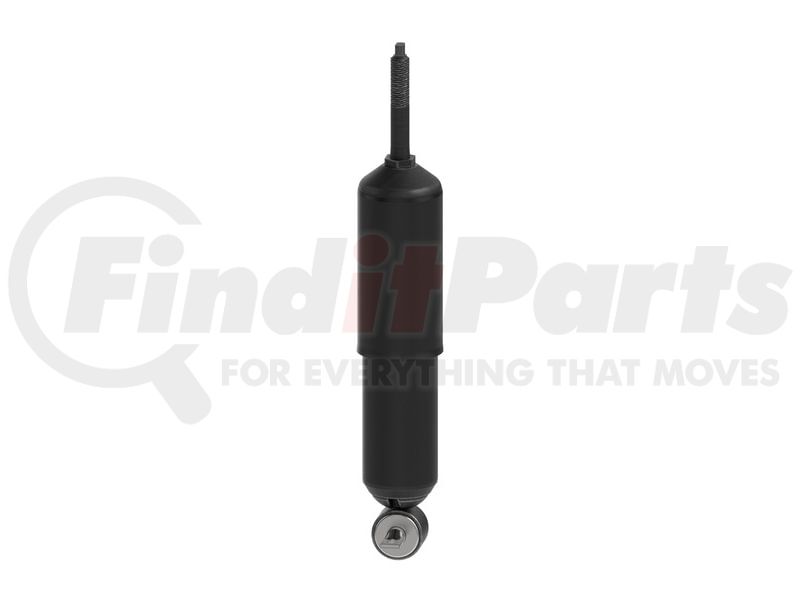

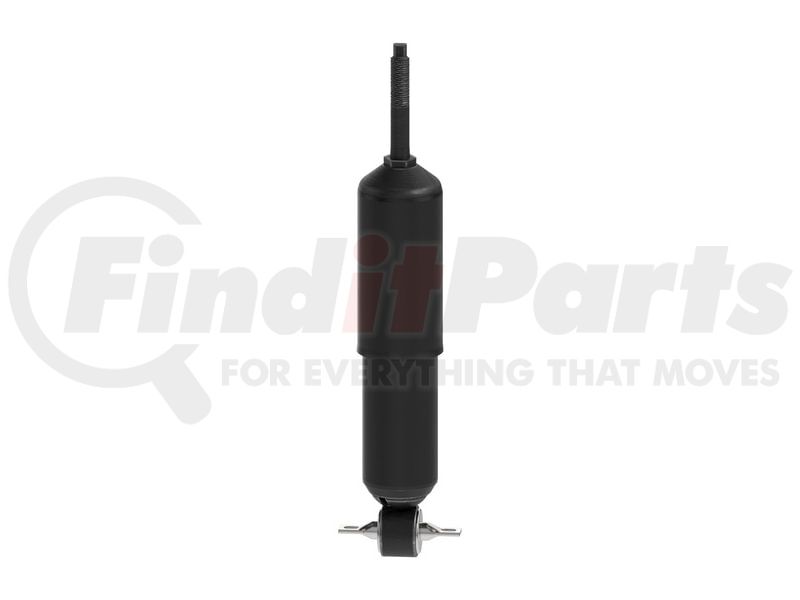

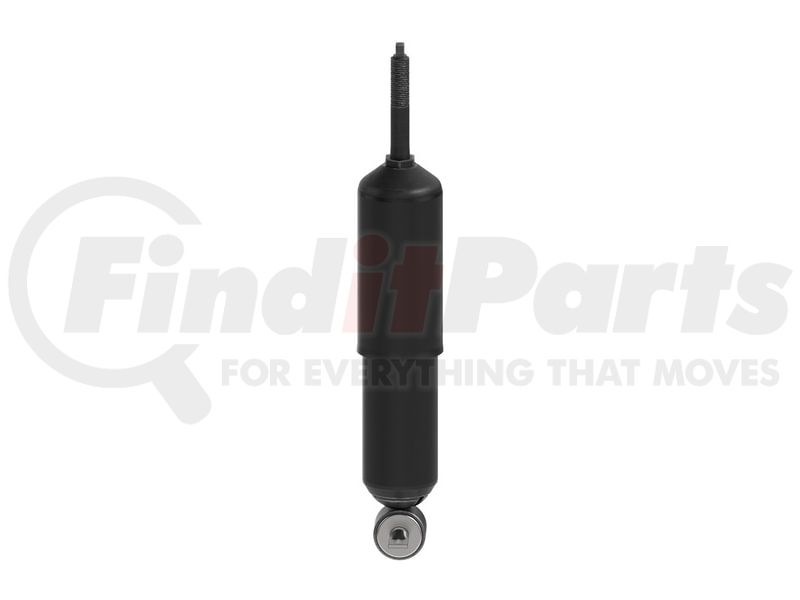

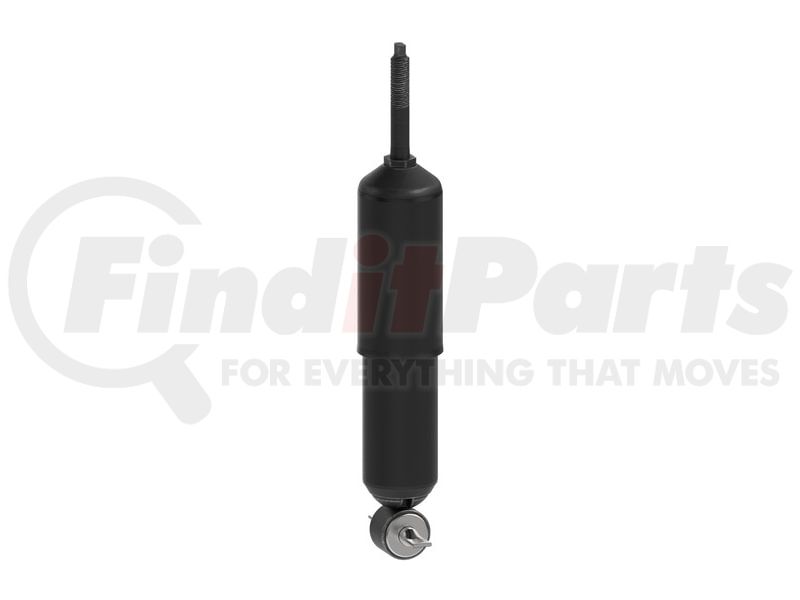

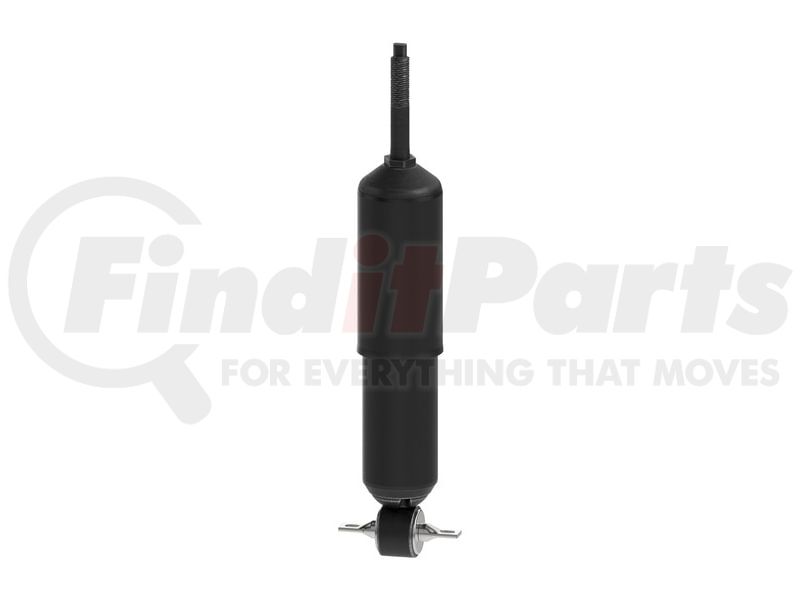

Reflex Suspension Shock Absorber

Features & Benefits

  • IMPROVES STABILITY -- ASD (Acceleration Sensitive Damping) valving technology adjusts to impacts, reducing roll and dive for vehicles with a higher center of gravity
  • EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
  • CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to run cooler
  • CONTROL AND DURABILITY -- Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
  • IMPROVES PERFORMANCE -- Nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration
  • BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
  • BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee

Product Attributes

9791 XP5
9789 S4
Dust Shield Included Yes
9783 No
9908 No
9792 No
Part Description Shock Absorber
Compressed Length 9.875 IN
Dust Shield Material Metal
Extended Length 14.125 in
Gas Charged Yes
Lower Mount Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.1/2" Pin Length (Hole Center to Center)
Parts Pack(s) P01136
Travel Length 4.25 in
Upper Mount Type Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Compressed Length 250.8 MM
Extended Length 358.8 MM
Travel Length 107.9 MM
Shock Absorber Rod End Measuring Point Base of Stem
Shock Absorber Body End Measuring Point Center of Mounting Hole

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598841841
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

Fits Vehicles

  • GMC Savana 3500 (2003-2024)
  • GMC Savana 2500 (2003-2024)
  • Chevrolet Express 2500 (2003-2024)
  • Chevrolet Express 3500 (2003-2024)
