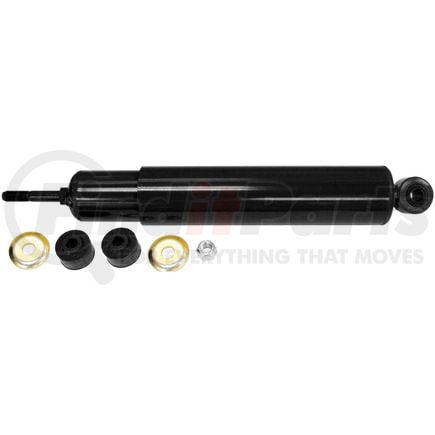

Monroe 74431 - Magnum Suspension Shock Absorber
$13849
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
MONROE part description
Product Description
Magnum Suspension Shock Absorber
Features & Benefits
- FOR HARDWORKING TRANSIT BUSES -- Designed to handle the demands of high mileage and severe use transit buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/4-in. reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore allows valve finetuning by allowing more hydraulic fluid to dissipate heat for better control
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (when required)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
- BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
Product Attributes
9791 | S6 |
9789 | LS81 |
Dust Shield Included | Yes |
9783 | No |
9908 | No |
9792 | Yes |
Part Description | Shock Absorber |
Internal Construction Type | Twin Tube |
9786 | 3.15 IN |
Adjustable Damping | No |
Color | Black |
Finish | Painted |
Shock Absorber Bore Size | 1-3/4 IN |
Shaft Diameter | 18 MM |
Body Diameter | 2.75 IN |
Compressed Length | 18.7344 IN |
Dust Shield Material | Metal |
Extended Length | 31.1094 in |
Gas Charged | No |
Lower Mount Type | Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
Parts Pack(s) | P01482 |
Shock Absorber Body End Measuring Point | Base of Stem |
Shock Absorber Rod End Measuring Point | Center of Loop |
Travel Length | 12.375 in |
Upper Mount Type | Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 1.7/8" Sleeve OAL |
Compressed Length | 475.9 MM |
Extended Length | 790.2 MM |
Travel Length | 314.3 MM |
Body Diameter | 69.9 MM |
9786 | 80 MM |
9801 | 44.5 MM |
9801 | 1.75 IN |
Adjustable Damping | No |
Additional Information
MSDS Sheet Number | 1164 |
Country of Origin (Primary) | US |
Canadian Harmonizing Tariff Code | 8708803000 |
Harmonized Tariff Code (Schedule B) | 8708801600 |
Harmonized Tariff Code (HTS) | 8708801600 |
UPC | 00048598036537 |
VMRS Code | 016008003 |
UNSPSC | 25172011 |
Part Interchanges
- MCI 12051139
- MCI 12051147
- MCI 12051166
- OEM 12051139
- Motor Coach Industries 12051023
- Motor Coach Industries 12051139
- OEM 12051166
- Motor Coach Industries 12051166
- OEM 12051147
- Motor Coach Industries 12051147
- Motor Coach Industries 12055445
- Motor Coach Industries 12051103
- Gabriel 85341
- NAPA Shocks 74431
- Gold Shock Absorber 8190124
- Bulldog HD HD11160051
MONROE 74431 Cross Reference
We have 15 alternatives for the 74431 by MONROE:
- MERITOR M85341
- 74431MM
- MAE74431
- GABRIEL 85341
- OEM 12051139
- MOTOR COACH INDUSTRIES 12051023
- MOTOR COACH INDUSTRIES 12051139
- OEM 12051166
- MOTOR COACH INDUSTRIES 12051166
- OEM 12051147
- MOTOR COACH INDUSTRIES 12051147
- MOTOR COACH INDUSTRIES 12051103
- MOTOR COACH INDUSTRIES 12055445
- HALDEX SA74431
- BULLDOG HD SHOCKS HD1116-0051
Fits Vehicles
- Motor Coach Industries J4500 (2001-2003, 2007, 2009-2019)
