MONROE 71771 Part Description
Manufacturer
Product Description

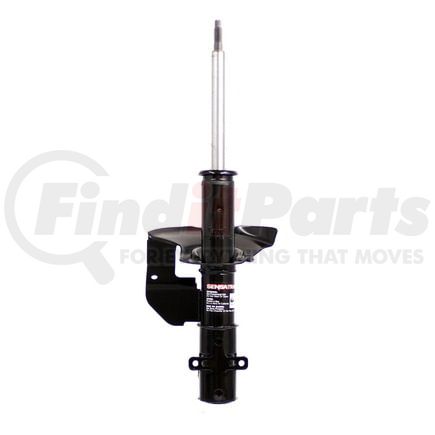

OESpectrum Suspension Strut
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Rod displaced valving, tuned specifically to each vehicle, adjusts to road extremes to provide consistency and a smooth ride (on most applications)
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- IMPROVES PERFORMANCE -- Nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration (on most applications)
- LONGER SERVICE LIFE -- Chrome-plated piston, bronze reinforced rod guide bearing and special single lip seal provide durability and longer service life (where applicable)
- OPTIONAL DUST BOOT/JOUNCE BUMPER -- Protective dust boot reduces dirt and moisture, while jounce bumper reduces severe suspension movement (both sold separately)
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 71771 Specifications
Product Attributes
| Compressed Length | 10.3 IN |
| Extended Length | 16.91 in |
| Travel Length | 6.61 in |
| Body Length | 9.97 IN |
| Body Type | B5 |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Strut Charging Type | Gas Charged Unit - Strut Rod Will Extend Automatically |
| Parts Pack(s) | None |
| Mounting Hardware Included | No |
| Compressed Length | 261.6 MM |
| Extended Length | 429.5 MM |
| Travel Length | 167.9 MM |
| Gas Charged | Yes |
| Body Length | 253.2 MM |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708801910 |
| Harmonized Tariff Code (Schedule B) | 8708801300 |
| Harmonized Tariff Code (HTS) | 8708801300 |
| UPC | 00048598043429 |
| UNSPSC | 25172007 |
MONROE 71771 Cross References
| Brand | Part Number |
|---|---|
| 71771ST, GD9Z1162527AB | |
| Buick | 22046418, 22046419, 22046421, 22046422, 22046424, 22047902, 22047903, 22048010, 22064336, 22064487, 22064488, 22064494, 22064495, 22064610, 22065229 |
| Chevrolet | 22046418, 22046419, 22046420, 22047901, 22047902, 22047903, 22048010, 22064336, 22064487, 22064488, 4993565 |
| FCS | 332308 |
| FCS Auto Parts | 332308 |
| Gabriel | G55514 |
| KYB | 234019 |
| KYB AMERICA LLC. | 234019 |
| NAPA Shocks | 71771 |
| Oldsmobile | 22047903, 22048010, 22064136, 22064336, 22064487, 22064488, 22064494, 22064495, 22064610, 22065229 |
| Pontiac | 22047901, 22047903, 22048010, 22064113, 22064114, 22064136, 22064336, 22064487, 22064488, 22064494, 22064495, 22064610, 4993585, 4993586 |
| Unity Automotive | 211070 |
MONROE 71771 Fits Vehicles
- Chevrolet Citation (1984-1985)
- Oldsmobile Cutlass (1987-1990)
- Pontiac 6000 (1984-1991)
- Oldsmobile Cutlass Cruiser (1987-1994)
- Oldsmobile Cutlass Ciera (1984-1996)
- Chevrolet Citation II (1984-1985)
- Chevrolet Celebrity (1984-1990)
- Buick Skylark (1984-1985)
- Buick Century (1984-1996)
