MONROE part description

Specifications
  • Body Type :B17
  • Body Length :14.000"
  • Compressed Length :14.500"
  • Extended Length :21.750"
  • Travel Length :7.250"
  • Dust Shield :No
  • Parts Pack(s) :P762
  • Compressed Bumper Stop :No
  • Extended Bumper Stop :No
  • Compressed Hydraulic Lockout :No
  • Extended Hydraulic Lockout :No
Feature and Benefit
  • Monroe OESpectrum struts are engineered specifically for foreign nameplate vehicles and feature the latest global original equipment valving technologies. Developed through years of research and on-vehicle testing, Monroe OESpectrum units provide an unprecedented level of handling precision and control while filtering out the ride harshness commonly encountered on many foreign nameplateapplications. This unique blend of control and comfort is made possible through Tenneco's"Twin Technology Active Control System", an exclusive internal damping control technology first developed for leading global vehicle manufacturers. Tenneco's Twin Technology consists of its latest Impact Control Valve (ICV), which delivers exceptional control under virtually all driving conditions, and a patented Low Speed Tunability (LST) piston design that isolates impact-related noise, vibration and harshness.
  • All Weather Fluid: Contains special modifiers to reduce friction and ensure smooth rod reaction.
  • Rod Displaced Valving: Tuned specifically for each application, this valving automatically adjusts to road extremes to provide consistency and ride comfort.
  • Fluon Banded Piston: The fluon band provides consistent sealing between the piston and pressure tube which delivers better control and increased durability.
  • Twin Technology: Impact Control Valve (ICV), delivers exceptional control under virtually all driving conditions, and patented Low Speed Tunability (LST) piston design that isolates impact-related noise, vibration and harshness.
  • Hardened and Chrome Plated Piston Rod: Long service life.
  • Nitrogen Gas Charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration.
  • Unique Rod Guide and Single Lip Seal: Bronze reinforced rod guide bearing and special seal provides longer service life and consistent performance.

Product Description

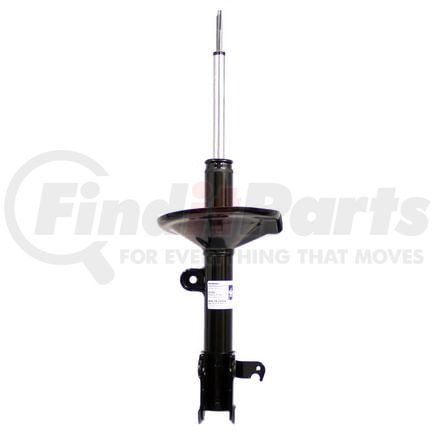

Monroe OESpectrum Strut

Application Summary

2005-2003 Honda Pilot Front Right, 2002-2001 Acura MDX Front Right

Monroe OESpectrum Strut

Product Attributes

Body Type B17
Body Length --- - 14.000"
Compressed Length --- - 14.500"
Extended Length --- - 21.750"
Travel Length --- - 7.250"
Dust Shield --- - 'No'
Parts Pack(s) --- - P1450
Cylinder Included --- - 'No'
Compressed Bumper Stop No
Extended Bumper Stop Yes
Extended Hydraulic Lockout --- - 'No'
Strut Charging Type Gas Charged Unit - Strut Rod Will Extend Automatically
Feature Point --- - ! 'Special Dust Boot/Jounce Bumper: Protective dust boot reduces dirt and any moisture build-up. Jounce bumper helps prevent severe suspension movement. Dust boot & jounce bumper sold separately.'
Most Popular Make / Model Honda Pilot
Most Popular Year 2005
Min Year Covered 2001
Max Year Covered 2005
Total Part VIO 397325
Product Grade Premium
Accesorio(s) P00762
Adjustable No
Body Length 17.060 IN
Compressed Length 14.480 IN
Cubre polvo No
Diámetro del Tubo de Reserva 1.984 in
Dust Shield Included No
Extended Length 21.690 in
Gas Charged Yes
Longitud del Cuerpo 17.060 in
Parts Pack P00762
Reserve Tube Diameter 1.984 in
Tipo de Cuerpo B17
Tope de rebote comprimido No
Tope de rebote extendido Yes
Travel Length 7.210 IN
Viaje 7.210 in
Tipo de carga del strut Gas Charged Unit - Strut Rod Will Extend Automatically

Part Interchanges

MONROE 71451 Cross Reference

We have 2 alternatives for the 71451 by MONROE:
