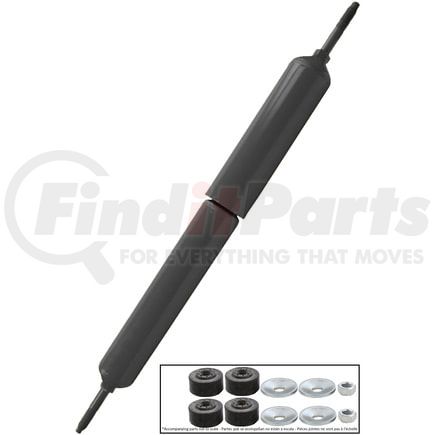

MONROE 66605 Monroe Shocks & Struts Magnum 66605 Shock Absorber

66605 by MONROE - Monroe Shocks & Struts Magnum 66605 Shock Absorber
MONROE
Tap to view 3 more
SHIPS TODAY

MSRP: $107.10

$59.99

Save $47.11

Limited availability at this price!

In Stock

Get it by Thursday, Jan 22
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

MONROE 66605 Part Description

Manufacturer

MONROE

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES   -- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2-in. or 2-1/4-in. reserve tube holds more fluid to improve performance (when required)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 66605 Specifications

Product Attributes

Lower Mount Code S5
Upper Mount Code S5
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout No
Part Description Shock Absorber
Compressed Length 12.859 IN
Dust Shield Material Metal
Extended Length 21.391 in
Gas Charged Yes
Lower Mount Type Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
Parts Pack(s) (2) P01303
Travel Length 8.532 in
Upper Mount Type Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
Compressed Length 326.6 MM
Extended Length 543.3 MM
Travel Length 216.7 MM
Shock Absorber Rod End Measuring Point Base of Stem
Shock Absorber Body End Measuring Point Base of Stem

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598074607
VMRS Code 016008003
UNSPSC 25172011

MONROE 66605 Cross References

BrandPart Number
66605MM, MAE66605
AutomannA83613
BULLDOG HD SHOCKSHD1214-0526
Bulldog HDHD12140526 , HD12140526
CHEVROLET3919567
DINA540395C92
Dayton Parts44183613
GABRIEL83613, 727761
GM3919567
General Motors3919567
HALDEXSA66605
INTERNATIONALAMS600164, 540395C92, 2504419C1
ISUZU1516301670
International Harvester (IHC)540395C92
KONI881646
KYB345601, 345620
KYB AMERICA LLC.345601
MACK600164, 600164MT
MERITORM83613
MONROE VINTAGE600164, 660164, 6605
Monroe Shocks & Struts600164, 660164, 6605
NAPA Shocks66605
NEWAY57306605
Navistar2504419C1, 540395C92, AMS600164
OEM540395C92
POWER10 PARTSSSA-83613
SACHS NORTH AMERICA315540
Sachs315540
THOMAS BUILT BUSES61300112
VOLVO / WHITE / GMC3919567
Volvo GM Heavy Truck3919567

MONROE 66605 Fits Vehicles

  • International 4700LP (1990-2002)
  • International 4600LP (1990-1994)
  • International 3800 (1987, 1990-2004)
  • International 3700 (1990-1994)
  • International 3400 (1996-2002)
  • International 1652SC (1986-1992)
  • International 1452SC (1987-1992)
  • Chevrolet W6500 Tiltmaster (1987-1996)
  • IC Corporation RE School Bus (2003-2018)
  • Isuzu FVR (1988-1992, 1994-1996)
  • Isuzu FTR (1988-1996)
  • Isuzu FSR (1989-1996)
