MONROE part description

Product Description

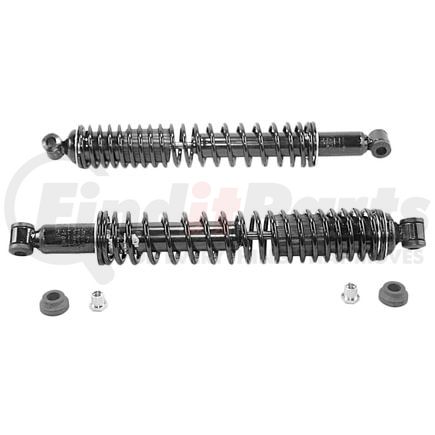

Load Adjusting Suspension Shock Absorber and Coil Spring Assembly Pack of 2

Features & Benefits

  • REDUCES SAG UNDER LOAD -- Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner's manual)
  • EXCEPTIONAL HANDLING -- Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
  • CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
  • LONGER SERVICE LIFE -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade

Product Attributes

9791 L2
Upper Mount Code L2
9783 No
Hydraulic Lockout No
Parts Pack(s) P00076
Part Description Shock Absorber and Coil Spring Assembly
Compressed Length 13 IN
Dust Shield Included Yes
Dust Shield Material Metal
Extended Length 21.25 in
9908 No
Lower Mount Type Loop Bushing Mount - 11/16" Bushing ID X 1.9/16" Bushing OAL
Travel Length 8.25 IN
Upper Mount Type Loop Bushing Mount - 11/16" Bushing ID X 1.9/16" Bushing OAL
Compressed Length 330.2 MM
Extended Length 539.8 MM
Travel Length 8.25 in
Travel Length 209.5 MM
9789 L2
Dust Shield Included Yes
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598010537
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

MONROE 58496 Cross Reference

We have 2 alternatives for the 58496 by MONROE:

Fits Vehicles

  • Chrysler Saratoga (1957-1960)
  • Chrysler Windsor (1955-1961)
  • Chrysler 300 (1955-1964)
  • DeSoto DeSoto (1961)
  • DeSoto Firesweep (1957-1959)
  • DeSoto Adventurer (1957-1960)
  • DeSoto Fireflite (1956-1960)
  • DeSoto Firedome (1955-1959)
  • Plymouth Savoy (1955-1961)
  • Plymouth Plaza (1955-1958)
  • Plymouth Fury (1959-1961)
  • Plymouth Belvedere (1955-1961)
  • Plymouth Barracuda (1964-1969)
  • Lincoln Continental (1961-1963)
  • Dodge Lancer (1962)
  • Dodge 880 (1963-1964)
  • Chrysler Newport (1961-1964)
  • Chrysler New Yorker (1955-1964)
  • Plymouth Duster (1970-1976)
  • Dodge Dart (1960-1961, 1963-1976)
