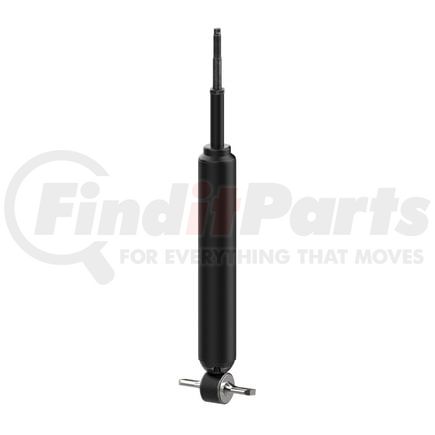

Monroe 5804 - OESpectrum Suspension Shock Absorber
$3649
MSRP: $58.37
Save: $21.88
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MONROE part description
Product Description
OESpectrum Suspension Shock Absorber
Features & Benefits
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
Product Attributes
| 9791 | XP4 |
| 9789 | S4 |
| Dust Shield Included | No |
| 9783 | No |
| 9908 | No |
| 9792 | No |
| Part Description | Shock Absorber |
| Compressed Length | 8.625 IN |
| Extended Length | 13.375 in |
| Gas Charged | Yes |
| Lower Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/16" Pin Length (Hole Center to Center) |
| Parts Pack(s) | P01134 |
| Travel Length | 4.75 in |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 219.1 MM |
| Extended Length | 339.7 MM |
| Travel Length | 120.6 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Mounting Hole |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598040039 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
Part Interchanges
MONROE 5804 Cross Reference
We have 5 alternatives for the 5804 by MONROE:
Fits Vehicles
- Volvo 145 (1968-1974)
- Volvo 144 (1967-1974)
- Volvo 142 (1967-1974)
- Volvo 164 (1975)
- Chevrolet Chevy II (1968)
- Pontiac Tempest (1968-1970)
- Buick Sportwagon (1968-1972)
- Buick Special (1968-1969)
- Nissan 411 (1964-1967)
- Nissan 410 (1964-1965)
- Pontiac Ventura (1971-1974)
- Pontiac LeMans (1970-1972)
- Pontiac GTO (1968-1972)
- Pontiac Grand Prix (1969-1972)
- Pontiac Firebird (1967-1969)
- Oldsmobile Vista Cruiser (1968-1972)
- Oldsmobile Omega (1973-1974)
- Oldsmobile F85 (1968-1972)
- Oldsmobile Cutlass Supreme (1968-1972)
- Oldsmobile Cutlass (1968-1972)
- Oldsmobile 442 (1968-1971)
- GMC Sprint (1971-1972)
- Chevrolet Nova (1969-1974)
- Chevrolet Monte Carlo (1970-1972)
- Chevrolet El Camino (1968-1972)
- Chevrolet Chevelle (1968-1972)
- Chevrolet Camaro (1967-1969)
- Buick Skylark (1968-1972)
- Buick Apollo (1973-1974)
- Toyota Mark II (1972-1976)
- Toyota Corona (1967-1978)
