MONROE part description

Product Description

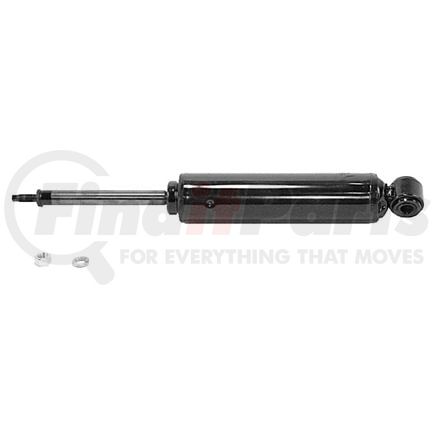

OESpectrum Suspension Shock Absorber

Features & Benefits

  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions while isolating impact-related noise, vibration and harshness
  • EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
  • CONTROL AND DURABILITY -- PTFE-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
  • CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
  • BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
  • BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee

Product Attributes

9791 LS37
9789 S3
Dust Shield Included No
9783 No
9908 Yes
9792 No
Part Description Shock Absorber
Compressed Length 9.875 IN
Extended Length 14.75 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.3/8" Sleeve OAL
Parts Pack(s) P00002
Travel Length 4.875 in
Upper Mount Type Stem Mount - Stem Length X 3/8"-24 Thread Pitch
Compressed Length 250.8 MM
Extended Length 374.7 MM
Travel Length 123.8 MM
Shock Absorber Rod End Measuring Point Base of Stem
Shock Absorber Body End Measuring Point Center of Loop

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598041715
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

MONROE 5763 Cross Reference

We have 2 alternatives for the 5763 by MONROE:

Fits Vehicles

  • Ford Thunderbird (1964-1966)
