MONROE 34817 Part Description
Manufacturer
Product Description

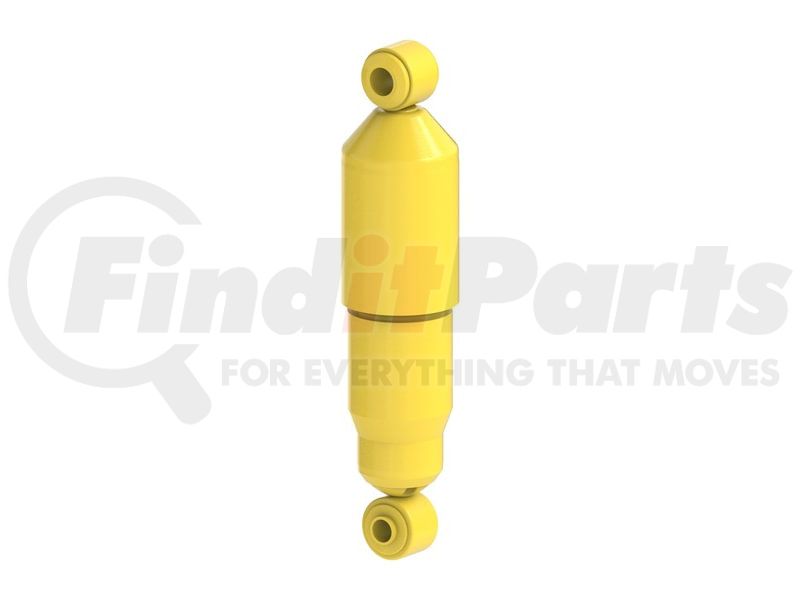

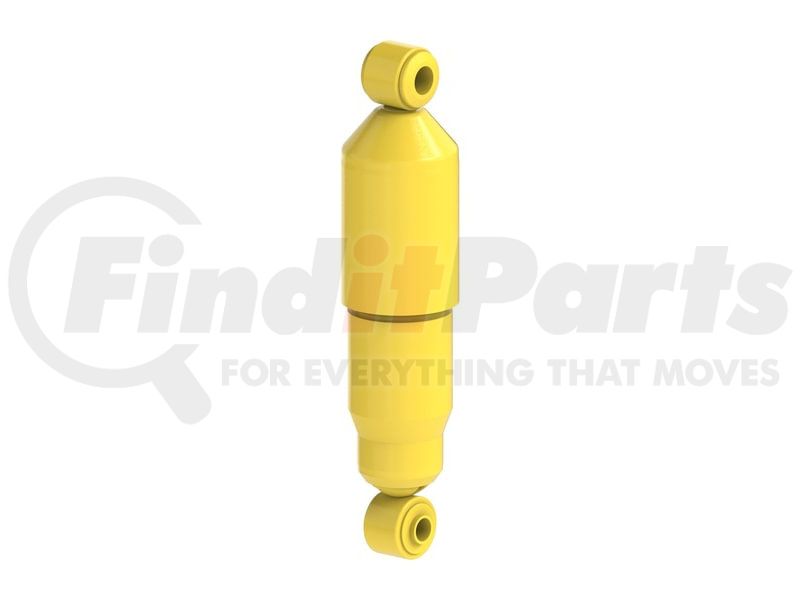

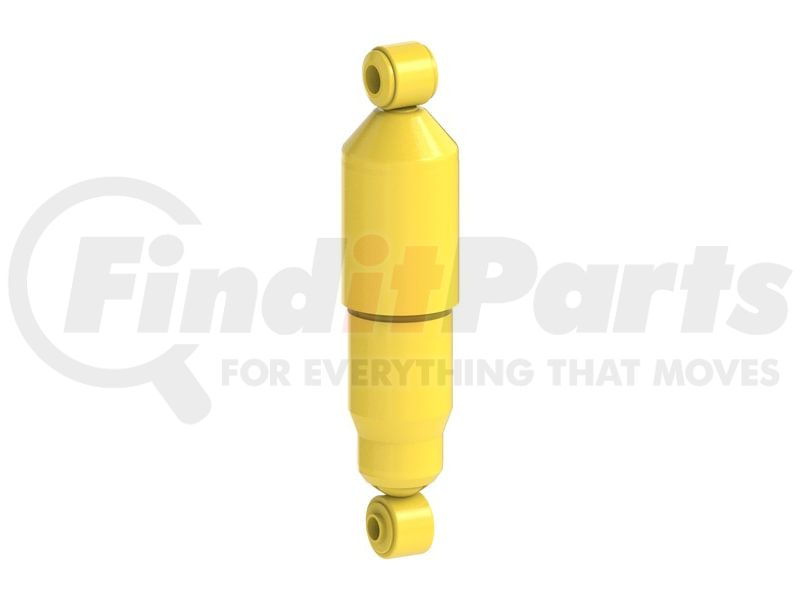

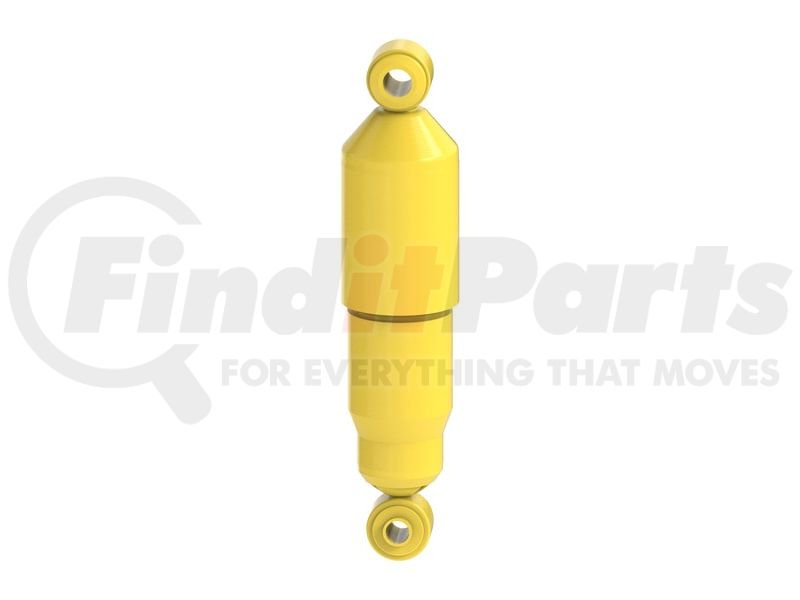

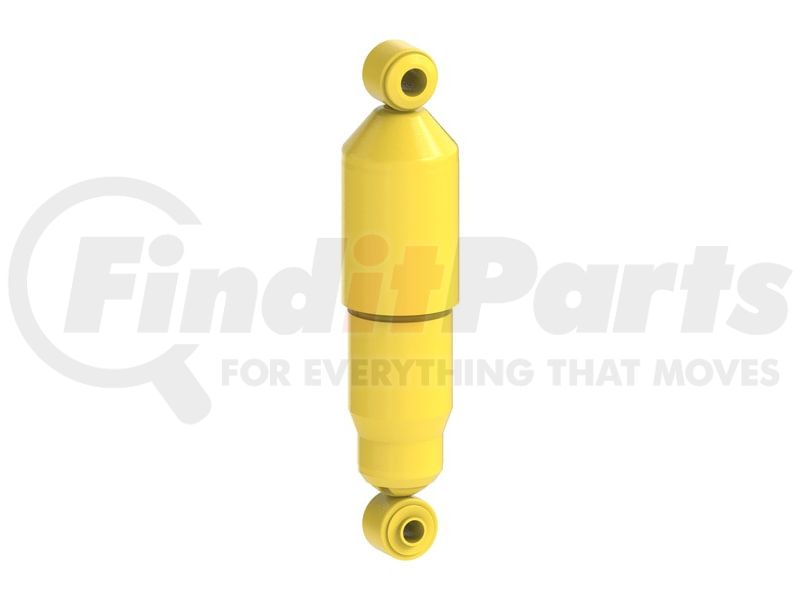

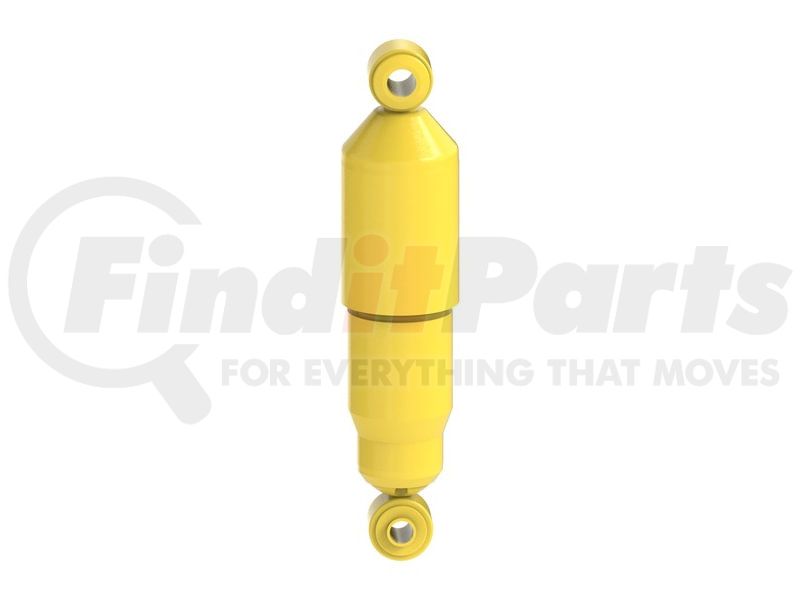

Gas-Magnum Suspension Shock Absorber
Features & Benefits
- DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
- BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 34817 Specifications
Product Attributes
| Lower Mount Code | LS36 |
| Upper Mount Code | L1/CP1 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 9.875 IN |
| Dust Shield Material | Metal |
| Extended Length | 14.625 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.5/16" Sleeve OAL |
| Parts Pack(s) | P00019 |
| Travel Length | 4.75 in |
| Upper Mount Type | L1/CP1 |
| Compressed Length | 250.8 MM |
| Extended Length | 371.5 MM |
| Travel Length | 120.6 MM |
| Upper Mount Type | Loop Bushing and Cantilever Pin Mount - 1/2" Stud Diameter X 1 1/16" Stud Length (Center of Loop to Frame) |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598469038 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 34817 Part Interchanges
| Brand | Part Number |
|---|---|
| Chevrolet | 22007756, 22011984, 22011988, 22012145, 22012149, 22017533, 22064294, 22064296 |
| GMC | 22007756, 22011984, 22011988, 22012145, 22012149, 22017533, 22064294, 22064296 |
| Gabriel | 58394, 77355, 58355 |
| ACDelco | 520138, 530133 |
| NAPA Shocks | 76817 |
| KYB | KG5409, 565032, KG6407, 344068 |
| MasterPro Shocks and Struts | GM111 |
| NAPA Proformer | SH81039 |
MONROE 34817 Fits Vehicles
- GMC 2500 (1966)
- GMC 1500 (1966)
- GMC 1000 (1966)
- GMC I3500 (1966)
- GMC I2500 (1966)
- GMC I1000 (1966)
- GMC I1500 (1966)
- GMC G1000 Series (1963)
- GMC 3500 (1963-1966)
- Chevrolet C20 Panel (1967)
- Chevrolet C30 Panel (1963-1966)
- Chevrolet C10 Panel (1963-1967)
- GMC PB1500 Series (1963-1965)
- GMC Suburban (1963-1966)
- GMC PB15 Series (1966)
- GMC PB1000 Series (1963-1966)
- GMC P35/P3500 Van (1968-1972)
- GMC P25/P2500 Van (1968-1974)
- GMC P15/P1500 Van (1967-1974)
- GMC C35/C3500 Pickup (1967-1974)
- GMC C25/C2500 Suburban (1968-1974)
- GMC C25/C2500 Pickup (1967-1974)
- GMC C15/C1500 Suburban (1968-1974)
- GMC 2500 Series (1963-1965)
- GMC C15/C1500 Pickup (1967-1974)
- GMC 1500 Series (1963-1965)
- GMC 1000 Series (1963-1965)
- Chevrolet Suburban (1963-1966, 1987-1991)
- Chevrolet P30 Van (1968-1972)
- Chevrolet P20 Van (1968-1974)
- Chevrolet P10 Van (1967-1974)
- Chevrolet P10 Series (1963-1967)
- Chevrolet C30 Pickup (1963-1974)
- Chevrolet C20 Pickup (1963-1974)
- Chevrolet C10 Pickup (1963-1974)
- Chevrolet Blazer (1969-1974)
- GMC R2500 Suburban (1987-1991)
- GMC R3500 (1987-1991)
- GMC R2500 (1987-1989)
- GMC R1500 (1987)
- GMC R1500 Suburban (1987-1991)
- GMC P2500 (1979-1989)
- GMC P25 (1975-1978)
- GMC P1500 (1979-1980)
- GMC P15 (1975-1978)
- GMC Jimmy (1970-1982)
- GMC C35 (1975-1978)
- GMC C3500 (1979-1986)
- GMC C2500 Suburban (1979-1986)
- GMC C25 Suburban (1975-1978)
- GMC C2500 (1979-1986)
- GMC C25 (1975-1978)
- GMC C1500 Suburban (1979-1986)
- GMC C15 Suburban (1975-1978)
- GMC C1500 (1979-1986)
- GMC C15 (1975-1978)
- Chevrolet R3500 (1989-1991)
- Chevrolet R30 (1987-1988)
- Chevrolet R2500 Suburban (1989-1991)
- Chevrolet R2500 (1989)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R20 (1987-1988)
- Chevrolet R1500 Suburban (1989-1991)
- Chevrolet R10 (1987)
- Chevrolet R10 Suburban (1987-1988)
- Chevrolet P20 (1975-1989)
- Chevrolet P10 (1975-1980)
- Chevrolet C30 (1975-1986)
- Chevrolet C20 Suburban (1967-1986)
- Chevrolet C20 (1975-1986)
- Chevrolet C10 Suburban (1967-1986)
- Chevrolet C10 (1975-1986)
- Chevrolet K5 Blazer (1975-1982)
MONROE 34817 Cross References
We have 6 alternatives for the 34817 by MONROE:
