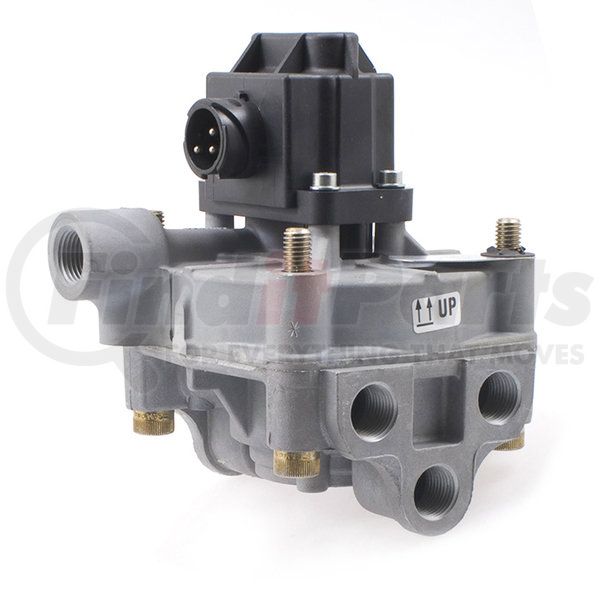

Name: Haldex al364041 ABS Modulator Relay Valve - Reservoir Mount, 6-Delivery Port, OEM 364141112
SKU: al364041
Price: 228.49 USD
Availability: InStock

HALDEX part description

Product Description

Valve ABS, Sol Relay Assembly 12V

Application Summary

Frame mount valve may be used in both applications by re-positioning cover. ECU and bracket may need to be transferred from existing valve. Pre 2009 need to purchase adapter cable AL919346.,Production part number is embossed on metal tag.

Features & Benefits

For the production part number, check the metal tag
Can be mounted on the reservoir
Reposition the cover if using the frame mount valves in both applications
ECU and bracket may need to be transferred from the existing valve

Haldex Air Brake Relay Valve

Get improved air brake system performance with the Haldex air brake relay valve. Manufactured by a brand with more than 100 years of engineering expertise, this 6-port, 12-volt ABS relay valve is designed to provide supreme levels of quality, performance, and reliability.

Product Attributes

Control Port Diameter	3/8 in.
Delivery Port Diameter	6 @ 3/8 in.
Freight Class	70
Mounting Location	Reservoir
Opening Pressure	4.0 PSI
Reservoir Port Diameter	1/2 in.
Spring Brake Port Diameter	3/8 in.
Supply Port Diameter	3/8 in.
Voltage	12V

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8481200060
Harmonized Tariff Code (HTS)	8481200060
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	36 MO, 200,000 MI=ABS - Antilock Braking Systems Including Haldex TRS (Valves, ECUs and Looms Only). 12 MO, 100,000 MI= All Other ABS - Antilock Braking Systems Components. See L20221W.pdf for warranty details
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653082868
VMRS Code	013011107

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX al364041 Cross Reference

We have 14 alternatives for the al364041 by HALDEX:
