Name: Haldex AL919340 ABS Electronic Control Unit - Din 12V, Slh-A7, Multi-Axle, Supports All 2S/1M Applications
SKU: al919340
Price: 344.99 USD
Availability: InStock

HALDEX part description

Product Description

ECUplcs1M,12V,A7,Long Cable, Din

Application Summary

PLC Select 1M Kits are available to upgrade earlier generation ECU platforms. Pre 2009 need to purchase adapter cable AL919347. Replaces AL919323,Multi, (Non-Steer)Connects directly to ECU - no intermediate cables required. PLC Select 1M supports all 2S/1M applications.

Features & Benefits

No intermediate cables required when connecting the wheel speed sensor and trailer power to the ECU
Single fastener design guarantees quick and easier serviceability and reduced maintenance costs
With potted ECU enclosure to withstand impacts, electrical overload, and extreme temperatures
PLC Select 1M ECU that supports all 2S/1M applications

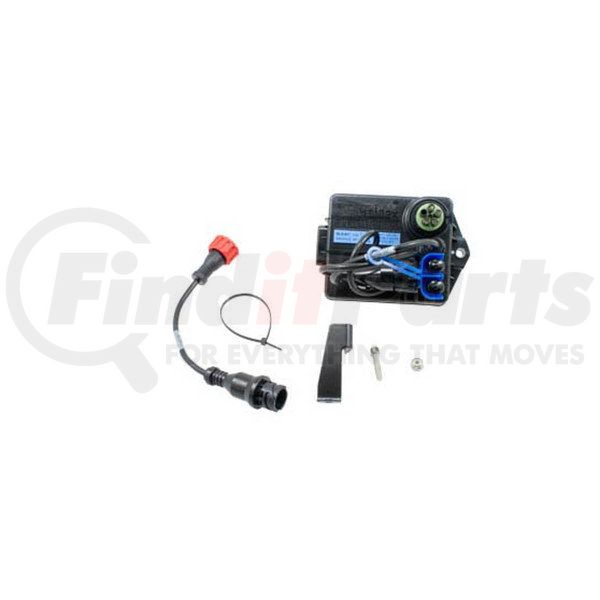

Haldex ABS Electronic Control Unit

Equip your truck’s anti-lock braking system with a high-quality Haldex ABS electronic control unit for improved traction. This product offers improved reliability to avoid unexpected breakdown and costly downtime.

Product Attributes

Voltage	12V
Connector Type	DIN
Freight Class	70
Height	4.25 in.
Notes	with 675mm Valve Cable Lead
Recommended Use	For use on Multi-Axle (Non-Steer) Applications with 2S / 1M Valves
Series	PLC Select 1M
Software	SLH-A7
Width	5.5 in.

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8543709960
Harmonized Tariff Code (HTS)	8543709960
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	36 MO, 200,000 MI=ABS - Antilock Braking Systems Including Haldex TRS (Valves, ECUs and Looms Only). 12 MO, 100,000 MI= All Other ABS - Antilock Braking Systems Components. See L20221W.pdf for warranty details
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653333311
VMRS Code	013011076

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX AL919340 Cross Reference

We have 1 alternatives for the AL919340 by HALDEX:

HDXAL919340
