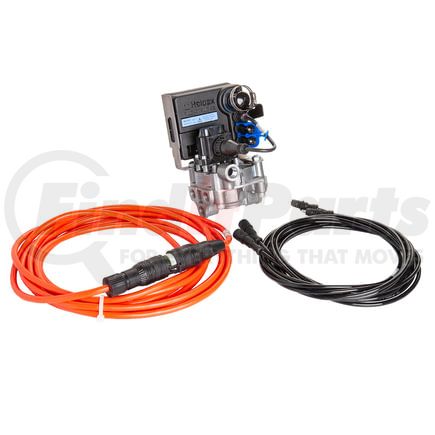

(888) 312-8812 Login SignupHALDEX AQ960503 ABS Control Module Kit - 2S/1M ABS Relay Valve Kit
$67749
Limited availability at this price!
2 Day Lead Time
Get it by Friday, Jan 16
HALDEX AQ960503 Part Description
Manufacturer
Product Description
2S/1M Kit
Application Summary
Kit includes 10 foot sensor extensions (AL919805). Kits produced prior to 3/1/05 had 1.5 foot sensor extensions (AL919800). Most ABS maintenance involves Wheel-end Sensors. Haldex recommends that Wheel-end Sensors be replaced when replacing or upgrading the ABS system. Replaces AQ960511, AQ960512 and AQ960513,MultiStandard ABS (Modular) requires an additional separate spring brake control. Do Not use this kit to replace the Haldex Full Function ABS (FFABS) System.
Features & Benefits
- With PLC select 2M ECU design
- Comes with am ABS relay valve type
- Requires an additional separate spring brake control for standards ABS
- Use together with the wheel-end sensors when upgrading or replacement the ABS system
- Can be used to replace the AQ960511, AQ960512, and AQ960513
Haldex ABS Valve Kit
For a hassle-free ABS maintenance, make sure you always have a Haldex ABS valve kit on hand. Made by a brand with over 100 years of engineering expertise, this 2S/1M kit for multi-axle applications is designed to help professional technicians and mechanics to complete their ABS maintenance and repair tasks easier and faster.
HALDEX AQ960503 Specifications
Product Attributes
| Control Port Diameter | 3/8 in. |
| Delivery Port Diameter | 6 @ 3/8 in. |
| ECU / Valve Number | N9001AA |
| ECU Design | PLC Select |
| Freight Class | 70 |
| Notes | (1) 6.0M Power Cord Extension, (2) 3.0M Sensor Extensions, (1) Blink Code Label, (1) Warning Label, (1) Literature |
| Reservoir Port Diameter | 1/2 in. |
| Valve Specifications | 6-Port |
| Valve Type | ABS Relay |
| Voltage | 12V |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8481200070 |
| Harmonized Tariff Code (HTS) | 8481200070 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 36 MO, 200,000 MI=ABS - Antilock Braking Systems Including Haldex TRS (Valves, ECUs and Looms Only). 12 MO, 100,000 MI= All Other ABS - Antilock Braking Systems Components. See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653293455 |
| VMRS Code | 013011076 |
HALDEX AQ960503 Cross References
| Brand | Part Number |
|---|---|
| 013-011-076, HDXAQ960503 | |
| Bendix | 5008503 |
| HALDEX | AQ960503M1D, AQ960503 |
| Haldex | AQ960512, AQ961101 |
| Meritor | R955344, R955345, R955373 |
| Midland | AQ960503, AQ960511, AQ960512, AQ960513, SN2611D, SN2611N |
| N/A | AQ960512, AQ960503, 5008503, R955344, U55 AQ960503, 10800262 |
| RYDER FLEET PROD. | U55 AQ960503 |
| Ryder | U55 AQ960503 |
| WABCO | R955373 |
| WORLD AMERICAN | WAS4005001010 |
| Wabash National | 10800262, 10800314, WAB10800262, WAB10800314 |
HALDEX AQ960503 Customer Reviews
No reviews yet
Be the first to review this product!
HALDEX AQ960503 Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
