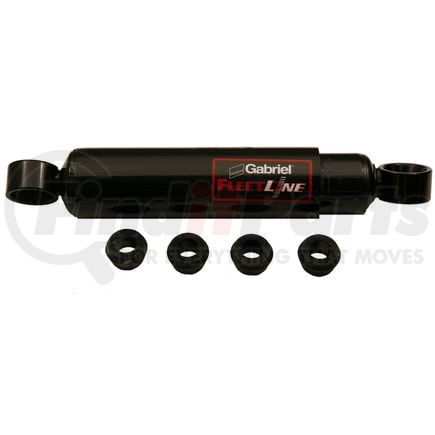

Gabriel 85305 - FleetLine Heavy Duty Shock Absorber
$7249
MSRP: $105.61
Save: $33.12
In stock
limited availability at this price!
GABRIEL part description
Product Description
FleetLine Heavy Duty Shock Absorber
Features & Benefits
- Larger 1 5/8” bore supplies improved durability and greater tensile strength for harsher operating conditions
- Bulged design provides increased fluid capacity and cooler operation in extreme conditions (85300 & 85700 series)
- Solid steel eye rings & 360° arc-welded end mounts deliver tough tensile strength that reduces end mount failures
- Chromed piston rod to inhibit corrosion, ensure proper seal lubrication and provide a more consistent wear surface
- Anti-corrosion end mounts to inhibit rust & corrosion
- Durable piston seal design
- Formulated shock oil for exceptional anti-fade performance
FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending
Product Attributes
Compression | 225 |
External Diameter Illustration | D |
Rebound | 1120 |
Core Color | Y |
Weight (lbs) | 10.7 |
Extended Length (in) | 27.25 |
Stroke (in) | 10.55 |
Dust Tube | YES |
Upper Mount Code | EB3 |
Lower Mount Code | EB3 |
Recoil Cutoff | NO |
Strut Mount Design | Upper |
Bore | 1-5/8" |
Collapsed Length (in) | 16.7 |
Installation Hardware Included | Yes |
Accessory Kit # | 401754 (4 ) |
Compression (lb) | 225 |
Dust Tube Material | Steel |
Package Contents | 1 Shock & Accessory Kit |
Rebound (lb) | 1120 |
HD Mounting Code Guide.pdf | https://gabriel.com/sites/default/files/2024_HD_Mounting_Code_Guide.pdf |
Additional Information
Harmonized Tariff Code (Schedule B) | 8708801600 |
Country of Origin (Primary) | MX |
MSDS Sheet Number | ARP002 / RC001 |
UPC | 00043645923860 |
VMRS Code | 016003016 |
UNSPSC | 25172011 |
Part Interchanges
- Euclid E85305
- Motorcraft AT-554
- ACDelco 507-18
- Meritor M85305
- Monroe Shocks & Struts 70041
- Monroe Shocks & Struts 70402
- PAI HSA-5067
- PAI HSA5067
- Arvin 728609
- Built Rite 70041
- Chevrolet 5316792
- Chevrolet 5316793
- Chevrolet 5352858
- Chevrolet 5394448
- Chevrolet 5394467
- Chevrolet 5516459
- Chevrolet 5522818
- Chevrolet 5527606
- Chevrolet 5554995
- Continental Trailways Bus 5394467
- Continental Trailways Bus 70041
- Fruehauf 5352858
- Fruehauf UCA-5431
- Fruehauf UCA5431
- GMC 5316792
- GMC 5316793
- GMC 5352858
- GMC 5394448
- GMC 5394467
- GMC 5516459
- GMC 5522818
- GMC 5527606
- GMC 5554995
- Volvo 1091376
- Volvo 35901-3406
- Volvo 359013406
- Jaguar F6HT-18080-JA
- Jaguar F6HT18080JA
- Jaguar F6HZ-18125-JA
- Jaguar F6HZ18125JA
- Oshkosh 1323106 MTM
- Hendrickson 57324-11
- Hendrickson 5732411
- Hendrickson 680600
- Western Star 35901-3406
- Western Star 359013406
- Mack 14QK-142
- Mack 14QK-2110
- Mack 14QK-2110P1
- Mack 14QK-2115
- Mack 14QK142
- Mack 14QK2110
- Mack 14QK2110P1
- Mack 14QK2115
- Mack 25632147
- Brockway 14QK-281P10
- Brockway 14QK281P10
- Batco 1085305
- Ridewell Corp S7365B
- Flxible Transit Bus 6-367-7
- Flxible Transit Bus 63677
- PRT 925287
- FCS F347318
- 5352858
- 5522818
- 5316793
- 5516459
- 5316792
- 5394467
- 5554995
- 5394448
- 5527606
- 85305
- 63677
- 6-367-7
- 101364
- 70041
- F6HT18080JA
- F6HT-18080-JA
- F6HZ18125JA
- F6HZ-18125-JA
GABRIEL 85305 Cross Reference
We have 60 alternatives for the 85305 by GABRIEL:
- MERITOR M85305
- GBL85305
- WORLD AMERICAN WA01-85305
- AC DELCO 507-18
- ARVIN MERITOR 728609
- BATCO 1085305
- BROCKWAY SCHOOL BUS 14QK-281P10
- BUILT RITE 70041
- BUS & TRUCK CO. 70041
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 5316792
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 5316793
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 5352858
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 5394448
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 5394467
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 5516459
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 5522818
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 5527606
- CHEVROLET TRUCK (ALSO SEE GMC TRUCK) 5554995
- CONTINENTAL TRAILWAYS-EAGLE INT'L 70041
- CONTINENTAL TRAILWAYS-EAGLE INT'L 5394467
- EAGLE MOTOR COACH 5394467
- EAGLE MOTOR COACH 70041
- EAGLE MOTOR COACH 101364
- EUCLID E85305
- FLXIBLE BUS 6-367-7
- FORD F6HT-18080-JA
- FORD F6HZ-18125-JA
- FRUEHAUF 5352858
- FRUEHAUF UCA-5431
- GMC TRUCK 5316792
- GMC TRUCK 5316793
- GMC TRUCK 5352858
- GMC TRUCK 5394448
- GMC TRUCK 5394467
- GMC TRUCK 5516459
- GMC TRUCK 5522818
- GMC TRUCK 5527606
- GMC TRUCK 5554995
- HENDRICKSON TRUCK SUSPENSION SYSTEMS 680600
- HENDRICKSON TRUCK SUSPENSION SYSTEMS 57324-11
- MACK 25632147
- MACK 14QK-142
- MACK 14QK-2110
- MACK 14QK-2110P1
- MACK 14QK-2115
- MAECO 70041
- MAECO 70402
- MC NEILUS TRUCK & MAN. 1323106 MTM
- MOHAWK 6-367-7
- MONROE 70402
- MOTORCRAFT AT-554
- PAI CORP HSA-5067
- RIDEWELL CORPORATION S7365B
- VOLVO 1091376
- VOLVO 35901-3406
- WESTERN STAR 35901-3406
- WESTERN UNIT ``STABILAIRE'' SUSPENSION 101364
- MONROE 65442
- BULLDOG HD SHOCKS HD1116-0054
- BULLDOG HD SHOCKS HD1215-0177
Fits Vehicles
- Mack RD (1981-2004, 2007)
- Mack R (1981-1991)
