MONROE part description

Product Description

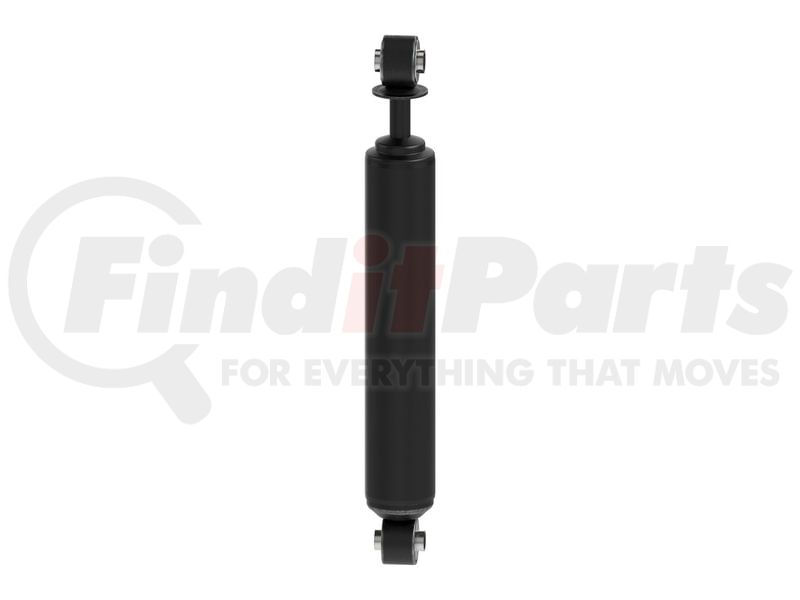

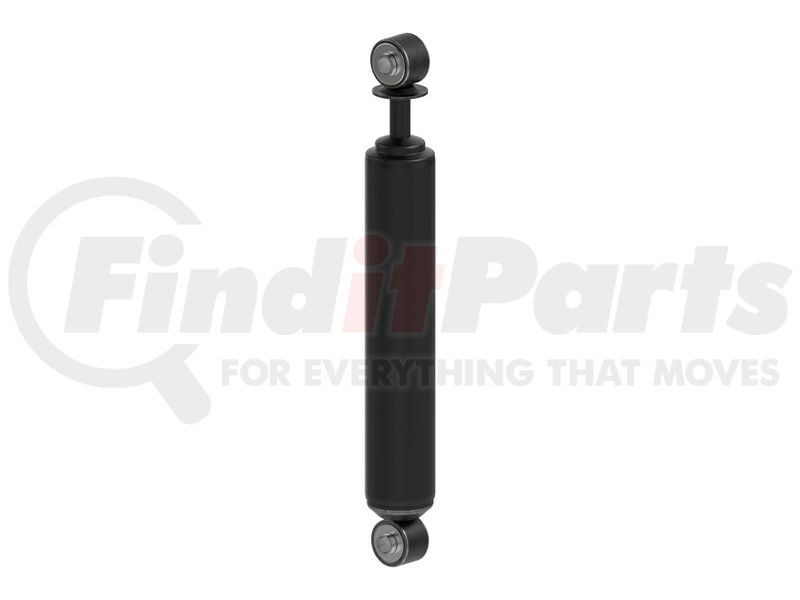

Magnum Steering Damper

Features & Benefits

  • REDUCES VIBRATION -- Ideal for trucks, vans, SUVs, and CUVs, it helps reduce vibrations that travel through the steering system before they get to the driver to improve control and cut down on driver fatigue in all driving conditions
  • CONSISTENT PERFORMANCE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
  • STRONG AND DURABLE -- Sintered iron piston and .50-in. nitrocarburized piston rod for enhanced durability and long service life
  • EXCEPTIONAL HANDLING -- Full displaced valving delivers better valving range on both compression and extension cycles for consistent performance
  • LONGER SERVICE LIFE -- Self-lubricating fluid seal retains gas without excessive wear or friction
  • MOUNTS HORIZONATALLY -- Micro-cellular gas design allows the unit to be mounted horizontally without impacting performance for improved steering control

Product Attributes

Compressed Length 14.05 IN
Extended Length 23.32 in
Shock Absorber Body End Measuring Point Center of Loop
Travel Length 9.27 in
Body Diameter 1.99 IN
Lower Mount Type Loop Bushing And Sleeve Mount - 1/2" Sleeve ID X 34.9mm Sleeve OAL
Lower Mount Code LS37
Upper Mount Type Loop Bushing And Sleeve Mount - 1/2" Sleeve ID X 34.9mm Sleeve OAL
Upper Mount Code LS37
Dust Shield Included Yes
Dust Shield Material Rubber
Gas Charged No
Parts Pack(s) None
Shock Absorber Rod End Measuring Point Center of Loop
Part Description Steering Damper
Compressed Length 356.9 MM
Extended Length 592.3 MM
Travel Length 235.5 MM
Body Diameter 50.5 MM

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708949900
Harmonized Tariff Code (Schedule B) 8708947550
Harmonized Tariff Code (HTS) 8708947550
UPC 00048598039446
VMRS Code 015004022
UNSPSC 25174202

Part Interchanges

MONROE SC2968 Cross Reference

We have 2 alternatives for the SC2968 by MONROE:

Fits Vehicles

  • Ram 3500 (2011-2013)
  • Ram 2500 (2011-2013)
  • Dodge Ram 3500 (2003-2010)
  • Dodge Ram 2500 (2003-2010)
