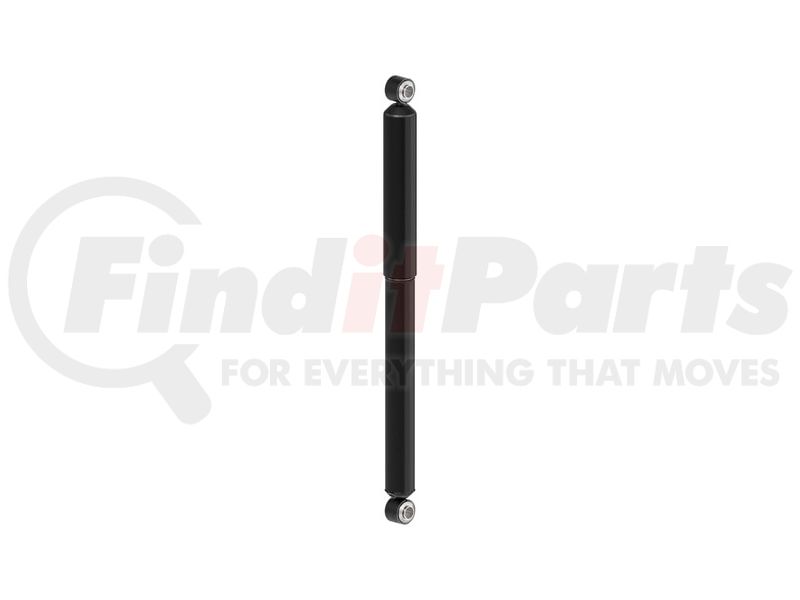

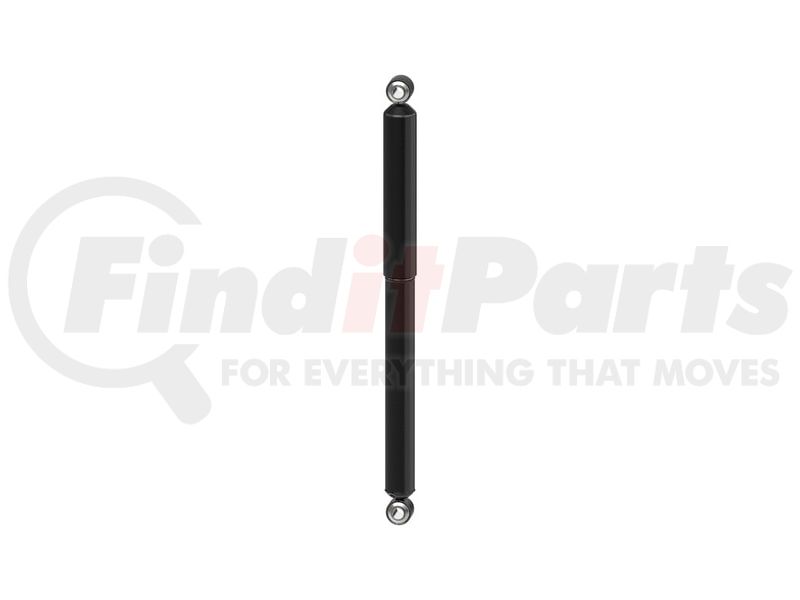

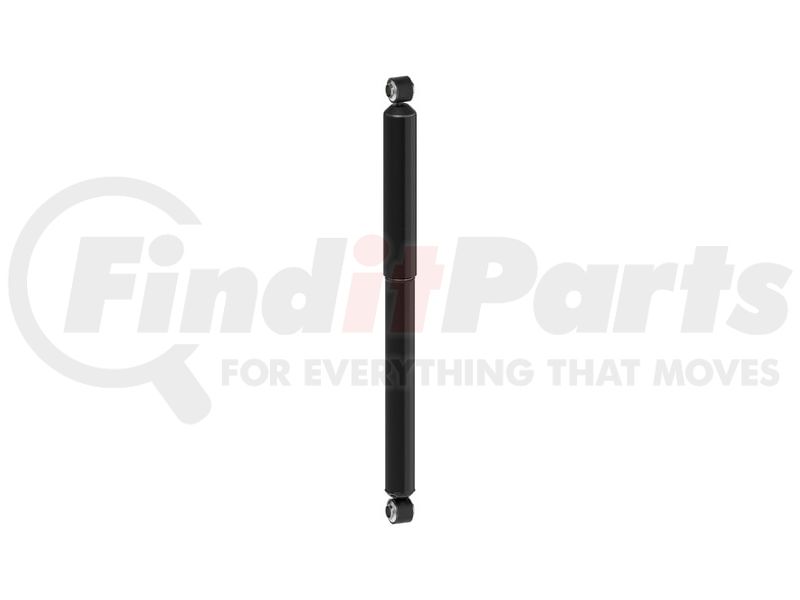

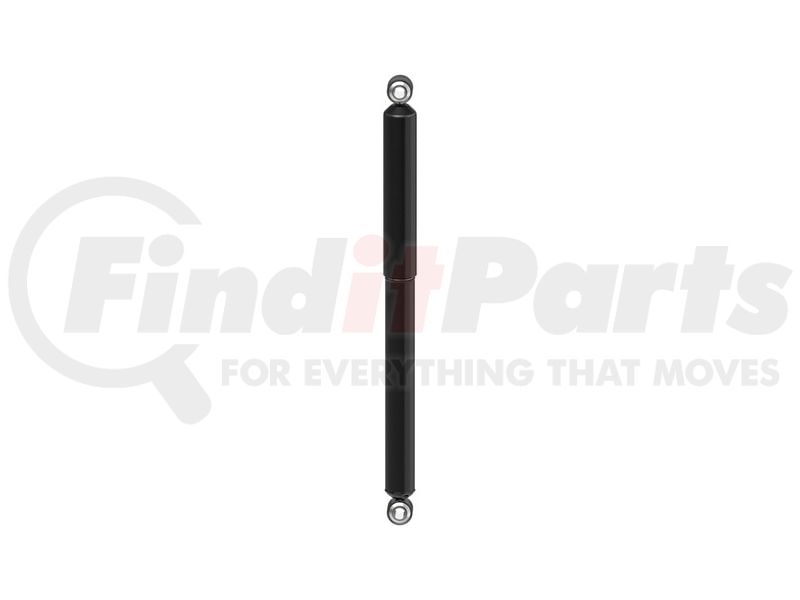

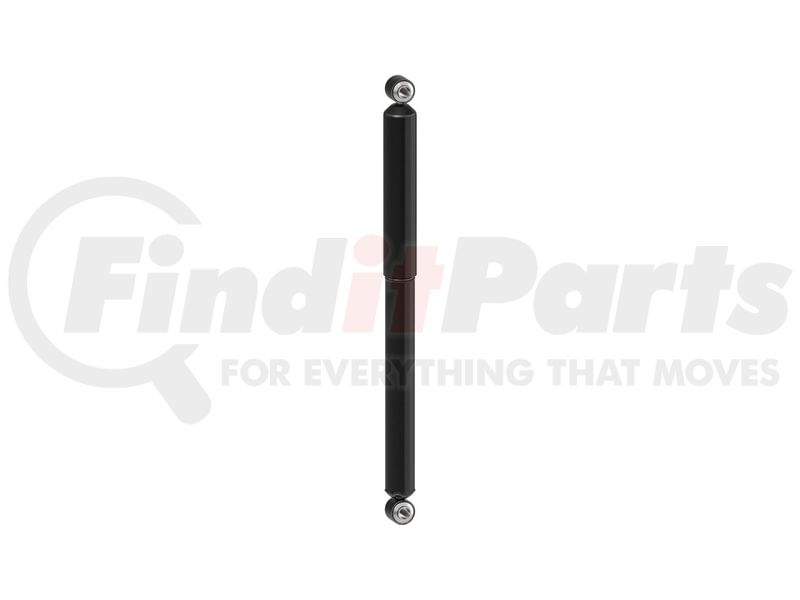

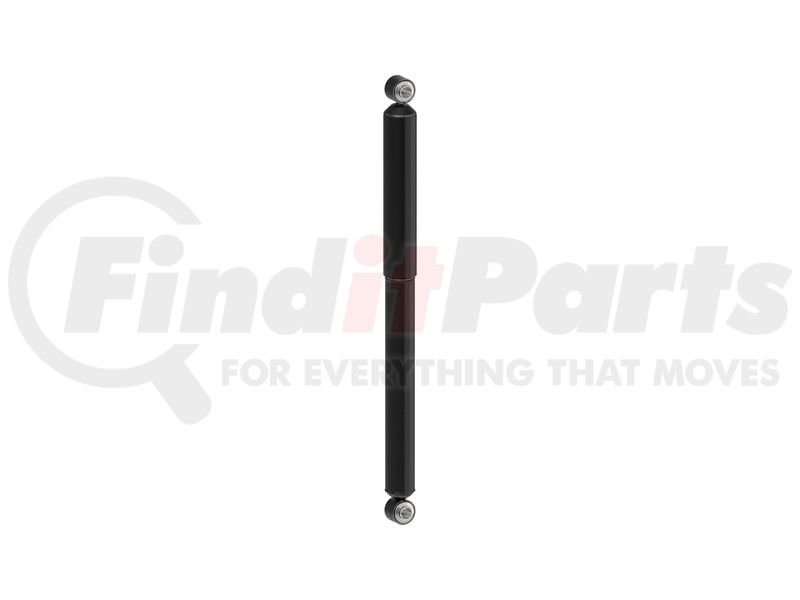

Name: Monroe 66462 Magnum Suspension Shock Absorber
SKU: 66462
Price: 80.49 USD
Availability: InStock

MONROE part description

Magnum Suspension Shock Absorber

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly
LONGER SERVICE LIFE -- Nitrocarburized piston rod provides durability and longer service life
REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

Product Attributes

9791	LS75
9789	LS75
Compressed Bumper Stop	No
Dust Shield	Yes
Extended Bumper Stop	No
Extended Hydraulic Lockout	Yes
Body Diameter	2 IN
Compressed Length	18.13 IN
Extended Length	29.46 in
Lower Mount Type	Loop Bushing and Sleeve Mount - 20mm Sleeve ID X 1 3/4" Sleeve OAL
Parts Pack(s)	None
Shock Absorber Body End Measuring Point	Center of Loop
Shock Absorber Rod End Measuring Point	Center of Loop
Travel Length	11.33 in
Upper Mount Type	Loop Bushing and Sleeve Mount - 20mm Sleeve ID X 1 3/4" Sleeve OAL
Compressed Length	460.5 MM
Extended Length	748.3 MM
Travel Length	287.8 MM
Body Diameter	50.8 MM
Dust Shield Included	Yes

Additional Information

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598245168
VMRS Code	016008003
UNSPSC	25172011

Part Interchanges

Fits Vehicles

Mack Pinnacle (2019-2021)
Mack Anthem (2018-2020)
Mack TD700 (2010-2017)
Mack CHU (2008-2019)
Mack GU8 (2008-2018)
Mack GU7 (2008-2018)
Mack CXU (2008-2019)
Mack GU5 (2012-2018)
Mack GU4 (2012-2018)
Volvo VAH (2011-2018)
Ford F-750 (2016-2019, 2021-2023)
Ford F-650 (2016-2019, 2021-2023)
