RAYBESTOS 56593 Part Description
Manufacturer
Product Description

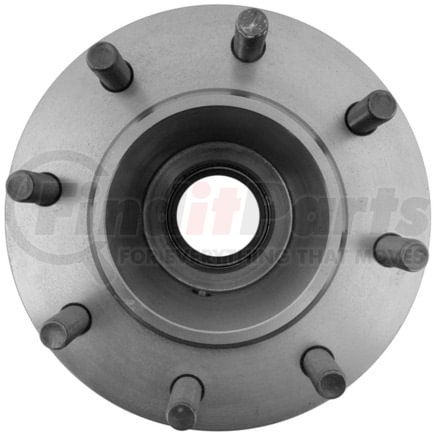

Raybestos Specialty - Truck Brake Rotor & Hub Assy
Application Summary
2002-1996 Chevrolet Express 3500 Front, 2000-1995 Chevrolet C3500 Front, 2002-1996 GMC Savana 3500 Front, 2000-1995 GMC C3500 Front
RAYBESTOS 56593 Specifications
Product Attributes
| ABS Tone Ring Included | Yes |
| Discard Thickness | 1.465 IN |
| Discard Thickness | 37.2 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 6.5 IN |
| Mounting Bolt Hole Circle Diameter | 165.1 MM |
| Mounting Bolt Hole Diameter | 0.603 IN |
| Mounting Bolt Hole Diameter | 15.3 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.535 IN |
| Nominal Thickness | 39 MM |
| Overall Height | 8.197 IN |
| Overall Height | 208.2 MM |
| Salability Restrictions | No |
| Stud/Lug Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | US |
| UPC | 00747730233116 |
RAYBESTOS 56593 Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-0983, 177-768 |
| ADVANCE AUTO PARTS | 145134, G12456SD, YH145134 |
| AMERICAN REMANUFACTURED | 789-44034, 89-44034 |
| AUTOSPECIALTY | AR8634, AR8634E |
| AUTOXTRA | 8056593, AX55032 |
| AUTOZONE | 55032 |
| BENDIX | 145134 |
| BRAKEBEST | 56593, 56593FZN, 56593R, 56593RGS, 81-125471, BD125471 |
| BREMBO | 09.8447.85, 27170 |
| CALIFORNIA DRUM & ROTOR | 125471 |
| CENTRIC | 120.66034, 121.66034, 125.66034, 126.66034CSL, 126.66034CSR, 126.66034SL, 126.66034SR, 320.66034F |
| CONTINENTAL-CONTITECH | CW39702 |
| Casting Numbers | 204873, 211145-C, 325437 |
| Centric Parts | 120.66034, 121.66034, 125.66034, 126.66034CSL, 126.66034CSR, 126.66034SL, 126.66034SR, 320.66034F |
| DELPHI | RB734 |
| DURA CORP | BR55032 |
| DuraGo | BR55032 |
| EUCLID | E-12329 |
| EUROROTOR | 55768 |
| FORMULA BLUE HYDRAULIC BRAKE PARTS | E12671039 |
| GM | 15691956, 18060213, 18039566, 19152698, 19202726 |
| GREN | 671603 |
| GUARDIAN | 52-125471 |
| General Motors | 15691956, 18039566, 18060213, 19152698, 19202726 |
| MAGMA PRODUCTS | PSR225203 |
| MIGHTY DISTRIBUTING SYSTEM | 55032 |
| MONROE BRAKES | BD125471 |
| NEWTEK AUTOMOTIVE | 55032 |
| Newtek Automotive USA | 55032 |
| PEP BOYS | 55032G |
| PROMAX | 14-55032 |
| QUALIS | 55032 |
| QUALITY BRAND | 55032 |
| STANDARD ROTORS AND DRUMS | 55032 |
| THE UNIVERSAL GROUP | 101701 |
| UAP | 55032 |
| Universal | 101701 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51229 |
| WABCO | PS125471 |
| WABCO - Archived | PS125471 |
| WAGNER | BD125471 |
| WAGNER BRAKE | BD125471 |
| WINHERE | 443112, YH3112 |
RAYBESTOS 56593 Fits Vehicles
- GMC Savana 3500 (1996-2002)
- GMC C3500 (1995-2000)
- Chevrolet Express 3500 (1996-2002)
- Chevrolet C3500 (1995-2000)
