CENTRIC 121.66034 Part Description
Manufacturer
Product Description

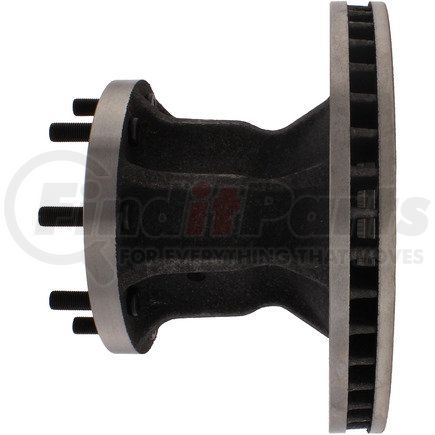

C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 121.66034 Specifications
Product Attributes
| Product Grade [cntrc] | Standard |
| Outer Bearing # [cntrc] | 415.66000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 49.000 |
| Inner Seal # [cntrc] | 417.66008 |
| Outer Race # [cntrc] | 416.66000 |
| Inner Bearing # [cntrc] | 410.91035 |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Kgs | 22.270 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Vane Style [cntrc] | Straight |
| Stud/Lug Hole Quantity | 8 |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Center Hole Diameter | 4.567 IN |
| Center Hole Diameter | 116.000 MM |
| Bearings Included | No |
| Bolt Thread Pitch | 1.500 MM |
| Solid Or Vented Type Rotor | Vented |
| Rotor Outside Diameter | 12.496 in |
| Rotor Outside Diameter | 317.400 MM |
| Surface Type | Smooth |
| ABS Tone Ring Included | Yes |
| Overall Height | 8.197 IN |
| Overall Height | 208.200 MM |
| Stud Thread Diameter | 14.000 MM |
| Nominal Thickness | 1.539 IN |
| Nominal Thickness | 39.100 MM |
| Discard Thickness | 1.465 IN |
| Discard Thickness | 37.210 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890051091 |
CENTRIC 121.66034 Cross References
| Brand | Part Number |
|---|---|
| 1056593, 56593, 52-125471, 52125471 | |
| MAGMA PRODUCTS | PMR225203 |
| N/A | 52125471, 52-125471, BD125471, E126-71-039, 55032, BR55032, 86593, 55032G, 107220, 15691956, 15992122, 145134, PRT5134, 56593, 56593R, 1056593, 101701, 78-44034, 7844034, 78944034, AR8634E, 177768, 60048030, E12671039 |
| RAYBESTOS | 56593, 56593FZN, 56593R |
| WAGNER | BD125471 |
CENTRIC 121.66034 Fits Vehicles
- Chevrolet G30 (1996)
- Chevrolet Express 3500 (1996-2002)
- Chevrolet C3500 (1995-2000)
- GMC Savana 3500 (1996-2002)
- GMC G3500 (1996)
- GMC C3500 (1995-2000)
