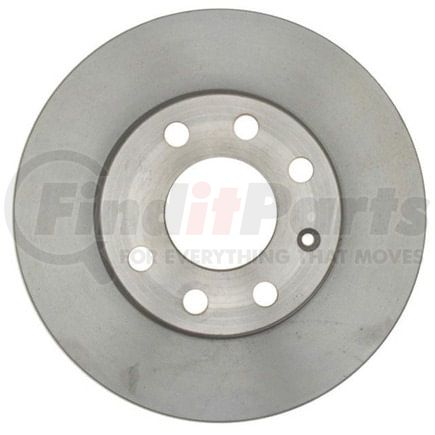

(888) 312-8812 Login SignupRAYBESTOS 5966R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 5966R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
1990-1988 Pontiac LeMans Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 5966R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.35 IN |
| Center Hole Diameter | 59.7 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.421 IN |
| Discard Thickness | 10.7 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 0.558 IN |
| Mounting Bolt Hole Diameter | 14.15 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.5 IN |
| Nominal Thickness | 12.7 MM |
| Outside Diameter | 9.285 IN |
| Outside Diameter | 235.85 MM |
| Overall Height | 1.62 IN |
| Overall Height | 41.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352364789 |
RAYBESTOS 5966R Cross References
| Brand | Part Number |
|---|---|
| 829352364789 | |
| ACDELCO | 177-797 |
| ADVANCE AUTO PARTS | 141418, YH141418 |
| AMERICAN REMANUFACTURED | 789-78001, 89-78001 |
| AUTOPART INTERNATIONAL | 78162 |
| AUTOSPECIALTY | EBR277, EBR277E |
| AUTOZONE | 3254 |
| BECK/ARNLEY | 080-2269, 083-2269 |
| BENDIX | 141418 |
| BRAKE HEADQUARTERS | BR09300 |
| BRAKE PRO | 4615966 |
| BRAKEBEST | 5966, 5966R, 5966RGS, BD61810 |
| BREMBO | 08.4475.30, 25098 |
| CALIFORNIA DRUM & ROTOR | 60668, 61810 |
| CENTRIC | 120.36002, 121.36002 |
| CENTURY | 9350 |
| Casting Numbers | 210394-C, 325092, 32541, 6745 |
| Centric Parts | 120.36002, 121.36002 |
| DAYTON WALTHER | D7275 |
| DELPHI | RB52 |
| DURA CORP | BR3254 |
| DuraGo | BR3254 |
| EIS BRAKES | D17339 |
| EUROROTOR | GM201 |
| GM | 90111242 |
| GREN | 920101 |
| GUARDIAN | 52-61810 |
| General Motors | 90111242 |
| INTERBRAKES | OP051P |
| ITM ENGINE COMPONENTS | 1600115 |
| MCI | 3914, 3914Q, 3915 |
| MIDAS | BR1600 |
| MIGHTY DISTRIBUTING SYSTEM | 3254 |
| NAPA BRAKES | SDK6085 |
| NEWTEK AUTOMOTIVE | 3254 |
| Newtek Automotive USA | 3254 |
| OPEL | 90008005 |
| PARTS MASTER | P61810 |
| QUALIS | 3254 |
| QUALITEE INTERNATIONAL | 64-93-270 |
| QUALITY BRAND | 3254 |
| QUINTON HAZELL | BDC3388 |
| ROADMATES | 526651 |
| ROCKHILL | 3254 |
| STANDARD ROTORS AND DRUMS | 3254 |
| THE UNIVERSAL GROUP | 101540 |
| TRUSTAR | 493270, R93270 |
| TRW | DF1608S |
| UAP | 3254 |
| Universal | 101540 |
| VARGA BRAKES | RPDI00420 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50496 |
| WAGNER BRAKE | BD61810 |
| WINHERE | YH1066 |
| WORLDPAC | 1407-78162 |
RAYBESTOS 5966R Fits Vehicles
- Pontiac LeMans (1988-1990)
