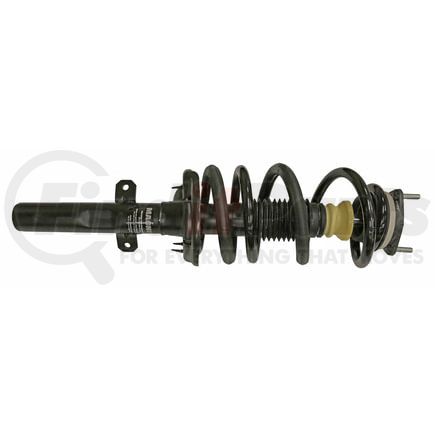

(888) 312-8812 Login SignupMONROE 153005 Magnum Loaded Assembly Suspension Strut and Coil Spring Assembly
Tap to view 7 more
$24549
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
MONROE 153005 Part Description
Manufacturer
Product Description
Magnum Loaded Assembly Suspension Strut and Coil Spring Assembly
Features & Benefits
- DESIGNED FOR DELIVERY AND FLEET VEHICLES – Engineered to handle frequent stops, heavy loads and high miles when under load to meet the demands of hardworking, light commercial vehicles to help you get the job done
- DESIGNED FOR DELIVERY AND FLEET VEHICLES - Engineered to handle frequent stops, heavy loads and high miles when under load to meet the demands of hardworking, light commercial vehicles to help you get the job done
- HELPS CARRY THE LOAD -- Variable rate coil spring delivers a comfortable ride and maintains ride height for everyday driving conditions or supporting the load
- MAINTAINS VEHICLE CONTROL -- Twin Technology™ Active Control System delivers exceptional control under most driving conditions
- BUILT TO LAST -- Bearing with PTFE coating protects the rod guide to reduce damage to the seal and chrome piston rod provides durability and long service life
- IMPROVES PERFORMANCE -- Nitrogen gas-charge helps maintain tire to road contact for improved ride and handling by reducing aeration and shock fade
- REDUCES FRICTION -- PTFE-banded piston helps reduce friction between the piston and pressure tube to respond more quickly to changing road surfaces
- RESPONDS TO CHANGING CONDITIONS -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- DUST BOOT/JOUNCE BUMPER -- Protective dust boot reduces dirt and moisture, while jounce bumper reduces severe suspension movement
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 153005 Specifications
Product Attributes
| Compressed Length | 16.81 IN |
| Extended Length | 25.02 in |
| Travel Length | 8.21 in |
| Body Length | 17.64 IN |
| Gas Charged | No |
| Parts Pack(s) | P01141 |
| Mounting Hardware Included | YES |
| Adjustable Damping | Yes |
| Compressed Length | 427 MM |
| Extended Length | 635.5 MM |
| Travel Length | 208.5 MM |
| Body Length | 448.1 MM |
| Includes Bump Stop | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Strut Mount(s) Included | Yes |
| Strut Mount Insulator(s) Included | Yes |
| Coil Spring Included | Yes |
| Coil Spring Insulator(s) Included | Yes |
Additional Information
| MSDS Sheet Number | 01170 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708801910 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801300 |
| UPC | 00048598239563 |
| VMRS Code | 016020006 |
| UNSPSC | 25172007 |
MONROE 153005 Cross References
| Brand | Part Number |
|---|---|
| Autopart International | 2701720342 |
| FCS | 1335991, 2335991 |
| Ford | CK4Z18124G, CK4Z18124F, CK4Z18124U, CK4Z18124D, CK4Z18124E, LK4Z18124P, LK4Z18124Q, FK4Z18124N |
| Gabriel | G57816 |
| NAPA Shocks | 153005 |
| Sensen | 9214-0485, 92140485 |
| Unity | 13380 |
MONROE 153005 Fits Vehicles
- Entegra Coach Expanse (2023)
- Winnebago EKKO (2022-2023)
- Ford Transit-350 HD (2020-2023)
- Ford Transit-350 (2018-2023)
- Ford Transit-150 (2018-2019)
- Ford Transit-250 (2018-2023)
