REACH COOLING part description

RADIATOR-BLUEBIRD-APPL

Product Description

Radiator

Features & Benefits

  • Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
  • Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
  • We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
  • Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
  • We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
  • Our fin edges are folded for increased stability and heat disbursement properties.
  • Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
  • Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
  • Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
  • Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
  • Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
  • Folded fin edges increase stability and heat disbursement properties.
  • Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.

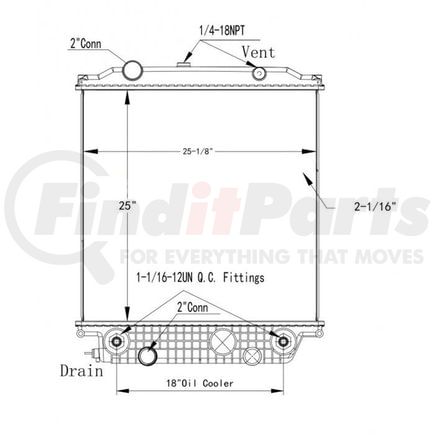

Product Attributes

Outlet Diameter 2 IN
Core Height 25 IN
Core Thickness 2 1/16 IN
Inlet Diameter 2 IN
Transmission Oil Cooler Distance between Fittings 18 IN
Core Width 25 1/8 IN
Core Height 635 MM
Inlet Location Top Left
Transmission Oil Cooler Distance between Fittings 457.5 MM
Radiator Cap Included No
Engine Oil Cooler Included No
Core Material Aluminum
Outlet Location Bottom Left
Tank Material Aluminum
Transmission Oil Cooler Included Yes
Down Flow Or Cross Flow Type Down Flow
Frame Included No

Part Interchanges

Fits Vehicles

  • Blue Bird Vision School Bus (2010-2017)

Founded in 1999, Reach Cooling® is a worldwide leader in the manufacture and distribution of aftermarket cooling products for light, medium, and heavy duty truck applications. Its fasting-growing division is within its medium and heavy duty truck part sector, offering more than 30 HD condensers, more than 50 HD charge air coolers, and more than 100 HD radiators. All these products are manufactured to meet the highest OE standards to fit some of the most popular US truck makes, including Peterbilt, Mack, International, Isuzu, GMC, Ford, and Freightliner. Headquartered in Miami, Florida, Reach Cooling is fully committed to providing customers with only the best products, most competitive prices, and exceptional service.
