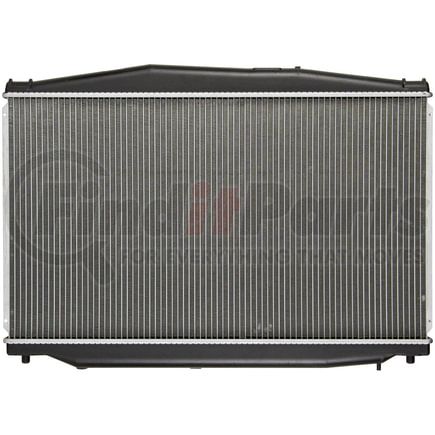

Name: Reach Cooling 41-1306 Radiator
SKU: 411306
Price: 244.49 USD
Availability: InStock

REACH COOLING part description

Product Description

Radiator

Application Summary

Lexus:92-95 SC400

Features & Benefits

Folded fin edges increase stability and heat disbursement properties.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Our fin edges are folded for increased stability and heat disbursement properties.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

No Shipping Restriction

radiator, complete, engine cooling, rad, cooling, heat, transfer

Product Attributes

Fitting Connection Type	Pipe connect
Core Width	736.6 MM
Inlet Header Length	749.30 MM
Transmission Oil Cooler Distance between Fittings	13 3/4 IN
Inlet Diameter	1 1/2 IN
Radiator Cap Included	Not Needed
Inlet Header Width	39.69 MM
Outlet Diameter	38 MM
Core Height	16 3/4 IN
Core Thickness	1 IN
Outlet Header Length	29 3/8 IN
Transmission Oil Cooler Included	Yes
Outlet Header Width	39.69 MM
Transmission Oil Cooler Type	Concentric
Engine Oil Cooler Included	No
Outlet Location	Bottom Right
Tank Material	Plastic
Trans Cooler Adapter Fittings Included (True/False)	False
Core Material	Aluminum
Inlet Location	Top Left
Core Row Quantity	1
Down Flow Or Cross Flow Type	Down Flow
Inlet Diameter	38.1 mm
Inlet Header Width	1.562 IN
Outlet Header Length	746.125 mm
Outlet Header Width	39.674 mm
Inlet Header Length	29.5 IN
Core Height	425.45 MM
Transmission Oil Cooler Distance between Fittings	349.25 MM
Inlet Header Length	749.3 mm
Inlet Header Width	39.674 mm
Outlet Header Width	1.562 IN
Outlet Diameter	38.1 MM
Core Width	29 IN
Outlet Header Length	746.1 MM
Transmission Oil Cooler Distance between Fittings	349.3 MM
Core Thickness	25.4 MM
Core Width	736.6 MM
Core Height	425.5 MM
Core Thickness	25.40 MM
Inlet Diameter	38.1 MM
Outlet Diameter	1.5 IN

Part Interchanges

Fits Vehicles

Lexus SC400 (1992-1995)
