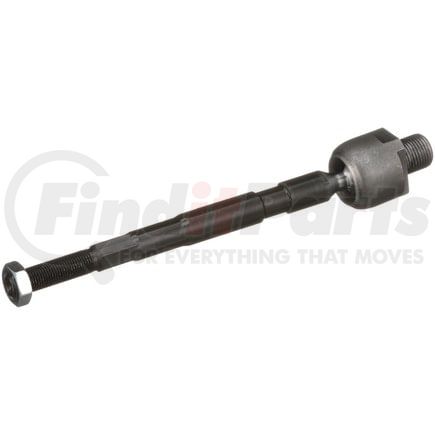

Name: Delphi TA3294 Tie Rod End
SKU: ta3294
Price: 26.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Left Inner
Item Grade	Standard Replacement
Length	227.00 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	No
Width	35 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	12.00 MM
Height	35.00 MM
Housing Material	Steel
36	0.630 IN
Tube Diameter	16.00 MM
Adjustable	Yes
Greasable	No
Weight	0.92 lb
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
End 2 Thread Pitch	1.25 MM
End 1 Thread Pitch	1.5 MM
Length Stud Center to End	7.520 IN
Length Stud Center to End	191.00 MM
Tie Rod Material	Steel
End 1 Thread Diameter	18.00 MM
Grade Type	Standard
Grade	Premium
End 2 Thread Diameter	0.472 IN
End 1 Thread Diameter	0.709 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708947550
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708947550
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604341704
VMRS Code	015004020
UNSPSC	25174205

Part Interchanges

Honda 53011SEL003

Fits Vehicles

Honda Fit (2006-2008)
