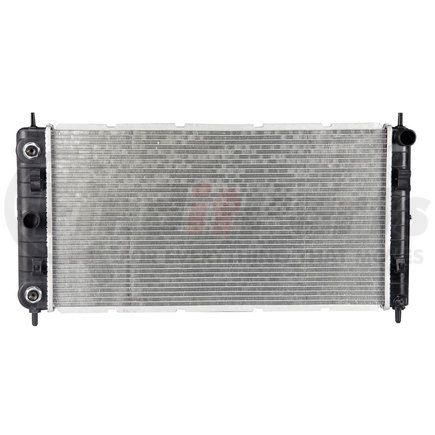

Name: Reach Cooling 41-2864 Radiator
SKU: 412864
Price: 167.99 USD
Availability: InStock

REACH COOLING part description

Product Description

Radiator

Application Summary

Chevrolet:2008-2012 Malibu; Pontiac:2006-2010 G6; Saturn:2007-2009 Aura

Features & Benefits

Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Folded fin edges increase stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our fin edges are folded for increased stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

No Shipping Restriction

radiator, complete, engine cooling, rad, cooling, heat, transfer

Product Attributes

Outlet Header Width	2 IN
Outlet Location	Center Left
Core Height	26.75 IN
Transmission Oil Cooler Distance between Fittings	11.5 IN
Core Thickness	1 IN
Core Width	355 MM
Inlet Header Length	14 7/8 IN
Tank Material	Plastic
Inlet Location	Upper Right
Transmission Oil Cooler Fitting Type	Quick Connect
Inlet Diameter	34.9 MM
Radiator Cap Included	Not Needed
Down Flow Or Cross Flow Type	Cross Flow
Transmission Oil Cooler Included	Yes
Inlet Header Width	50.80 MM
Transmission Oil Cooler Type	Plated
Outlet Diameter	34.9 MM
Core Row Quantity	1
Engine Oil Cooler Included	No
Outlet Header Length	14 7/8 IN
Core Material	Aluminum
Transmission Oil Cooler Distance between Fittings	292 MM
Core Width	355.6 MM
Fitting Connection Type	Quick connect
Inlet Diameter	34.925 mm
Transmission Oil Cooler Distance between Fittings	292.1 MM
Core Thickness	26 MM
Outlet Header Width	50.80 MM
Outlet Diameter	34.925 MM
Inlet Diameter	1 3/8 IN
Core Width	14 IN
Inlet Header Width	50.8 mm
Outlet Header Length	377.825 mm
Outlet Header Length	377.8 MM
Core Thickness	25.4 MM
Inlet Header Length	377.825 mm
Outlet Header Width	50.8 mm
Inlet Header Length	377.8 MM
Core Height	679.45 MM
Core Height	680 MM
Inlet Header Width	2 IN
Outlet Diameter	1 3/8 IN

Additional Information

Country of Origin (Primary)	CN
UPC	06949521771942
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

Fits Vehicles

Chevrolet Malibu (2008-2012)
Saturn Aura (2007-2009)
Pontiac G6 (2006-2010)
