Name: Reach Cooling 41-1552 Radiator
SKU: 411552
Price: 210.99 USD
Availability: InStock

REACH COOLING part description

Product Description

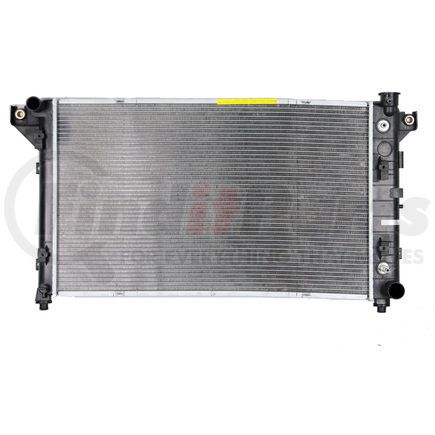

Radiator

Application Summary

Dodge:95-96 B1500/ B2500/ B3500/ Dakota/94-2002 Ram 1500/94-2001 Ram 2500/94-98 Ram 3500

Features & Benefits

Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Folded fin edges increase stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our fin edges are folded for increased stability and heat disbursement properties.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

No Shipping Restriction

radiator, engine cooling, rad, car radiator, auto radiator, radiator cap

Product Attributes

Trans Cooler Adapter Fittings Included (True/False)	True
Core Height	31 5/8 IN
Core Width	19 IN
Inlet Header Length	514.4 MM
Core Material	Aluminum
Inlet Header Width	63.50 MM
Down Flow Or Cross Flow Type	Cross Flow
Outlet Diameter	1 3/4 IN
Fitting Connection Type	Pipe connect
Transmission Oil Cooler Included	Yes
Radiator Cap Included	No
Outlet Header Length	514.4 MM
Inlet Diameter	1 1/2 IN
Core Row Quantity	1
Engine Oil Cooler Included	No
Transmission Oil Cooler Distance between Fittings	14 3/4 IN
Inlet Location	Upper Left
Core Thickness	1 1/4 IN
Transmission Oil Cooler Type	Concentric
Outlet Location	Lower Right
Tank Material	Plastic
Outlet Header Width	2 1/2 IN
Inlet Header Width	63.5 mm
Outlet Header Width	63.5 mm
Inlet Header Length	20 1/4 IN
Outlet Header Width	63.5 MM
Outlet Diameter	44.5 MM
Inlet Header Length	514.35 mm
Outlet Header Length	514.35 mm
Transmission Oil Cooler Distance between Fittings	374.65 MM
Core Thickness	31.8 MM
Core Width	482.6 MM
Core Height	803.3 MM
Inlet Header Width	2.5 IN
Inlet Diameter	38.1 mm
Transmission Oil Cooler Distance between Fittings	374.7 MM
Outlet Header Length	20 1/4 IN
Core Height	803.275 MM
Core Thickness	31.75 MM
Outlet Diameter	44.45 MM
Core Width	482 MM
Inlet Diameter	38.1 MM

Additional Information

Country of Origin (Primary)	CN
UPC	06949521706395
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 41-1552 Cross Reference

We have 1 alternatives for the 41-1552 by REACH COOLING:

DENSO 221-7005

Fits Vehicles

Dodge Ramcharger (1994-1996, 1999-2001)
Dodge Ram 4000 (1995-1997)
Dodge Ram 3500 (1994-1997)
Dodge Ram 2500 (1994-2001)
Dodge Ram 1500 (1994-2002)
