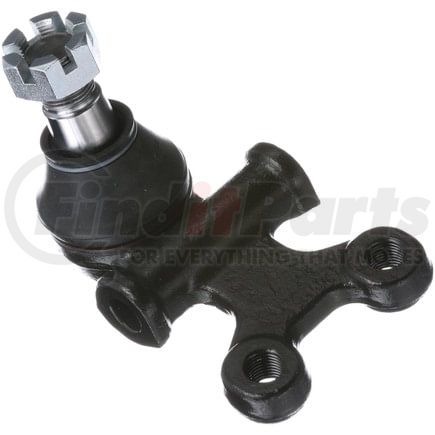

Delphi TC5566 - Ball Joint
$6349
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 20 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 151 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 3.622 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.827 IN |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 60.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| 9212 | 0.85 IN |
| Stud Tapered End 2 Diameter | 21.6 MM |
| 9213 | 0.949 IN |
| Stud Tapered End 1 Diameter | 24.1 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 80.00 MM |
| Length | 3.150 IN |
| Stud Thread Diameter | 0.79 IN |
| Height | 92.00 MM |
| Stud Thread Length | 21.01 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604307083 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Mazda MPV (1989-1998)
