Name: Reach Cooling 61-1369 Charge Air Cooler
SKU: 611369
Price: 1118.99 USD
Availability: InStock

REACH COOLING part description

Product Description

Charge Air Cooler

Application Summary

Peterbilt:93-2007 320/2002 379

Features & Benefits

Deep Extrusion Header: Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion.
Reach charge air coolers are built to withstand the pressures of long hauls. From the product design to the package it is shipped in, every consideration is taken to ensure longevity and peak performance.
Reinforced Aluminum Alloy: Header reinforced with aluminum bronze to increase strength by 50%.
7 Layer Packaging: Each charge air cooler is packaged in a heavy duty, 7 layer corrugated box to ensure best protection during transit.
Header Plate Bond: We use a wider angle header plate bond to eliminate the risk of header cracking.
Reinforcement Rib: Tubes feature a reinforcing rib to increase material strength.
Flat Tube Wall Thickness: Flat tube wall thickness is no less than .55mm to maximize ability to withstand added pressure.

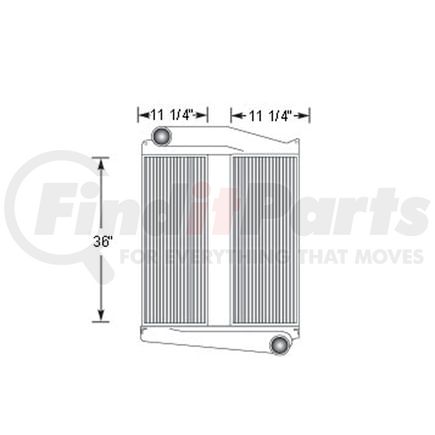

Product Attributes

Outlet Location	Lower Left
Core Height	923 MM
Core Length	284 MM
Outlet Outside Diameter	4 IN
Inlet Location	Upper Right
Core Material	Aluminum
Inlet Outside Diameter	3 1/8 IN
Core Height	36.312 IN
Inlet Outside Diameter	79.4 MM
Core Thickness	2 9/16 IN
Core Thickness	65.1 MM
Core Length	11.187 IN
Outlet Outside Diameter	102 MM
Type	Tube and Fin

Additional Information

Country of Origin (Primary)	CN
UPC	06941099912383

Part Interchanges

REACH COOLING 61-1369 Cross Reference

We have 52 alternatives for the 61-1369 by REACH COOLING:

Fits Vehicles

Peterbilt 320 (1993-2007)
Peterbilt 379 (2002)
