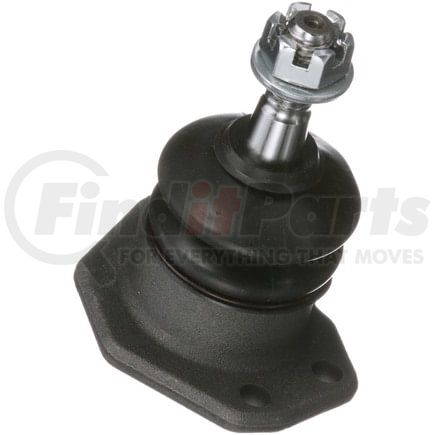

Delphi TC5669 - Ball Joint
$6149
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 60 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 1.654 IN |
| Mounting Bolt Length | 42.00 MM |
| Washers Included | Yes |
| Height | 3.858 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.965 IN |
| 839 | 10mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 6.00 MM |
| 9203 | 0.441 IN |
| Mounting Bolt Head Diameter | 11.20 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1 MM |
| Mounting Bolt Thread Length | 40.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| 9212 | 0.496 IN |
| Stud Tapered End 2 Diameter | 12.6 MM |
| 9213 | 0.63 IN |
| Stud Tapered End 1 Diameter | 16 MM |
| Stud Thread Pitch | 1.75 MM |
| Length | 80.00 MM |
| Length | 3.150 IN |
| Stud Thread Diameter | 0.47 IN |
| Height | 97.99 MM |
| Stud Thread Length | 24.51 MM |
| 9202 | 0.240 IN |
| 9207 | 1.570 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604311561 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Chevrolet Corvette (1984-1996)
