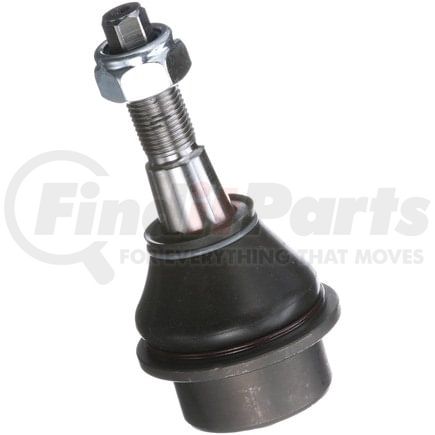

Delphi TC5385 - Suspension Ball Joint - Front, Lower, Non-Adjustable, without Bushing, Non-Greaseable
$3949
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.362 IN |
| Maximum Outside Diameter | 60.0 MM |
| Color | Gray |
| Stud Thread Diameter | 16.0 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 60.0 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 5.0 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greasable | No |
| 4966 | 1.28 IN |
| Stud Type | Threaded |
| Mounting Type | Press In |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| 9212 | 0.717 IN |
| Stud Tapered End 2 Diameter | 18.2 MM |
| 9213 | 0.894 IN |
| Stud Tapered End 1 Diameter | 22.7 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 5.0 IN |
| Length | 127.0 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604301500 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Ram 1500 (2011-2012)
- Dodge Ram 1500 (2002-2010)
