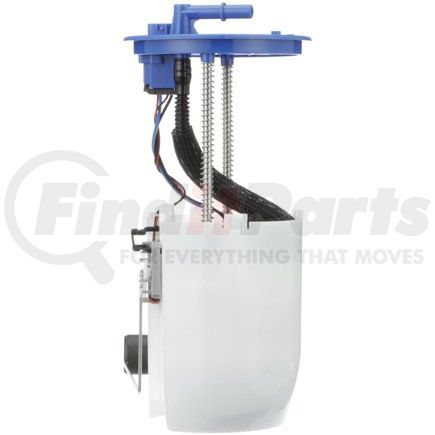

Delphi FG2196 - Fuel Pump Module Assembly
$30199
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Fuel Pump Module Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Fuel Feed Line, Instruction Sheet |
| Vapor Pressure Sensor | No |
| Fuel Level Sender Assembly Included | Yes |
| System Pressure | 55 psi |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 59 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 1 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 131 82 |
| Resistance Ohms Full | 20 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 7 68 |
| Average Flow Rating | 24 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 55 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 9026204000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| UPC | 00689604295830 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
Part Interchanges
Fits Vehicles
- Suzuki Grand Vitara (2009-2013)
