(888) 312-8812 Login SignupRAYBESTOS 981914R Raybestos R-Line Brake Rotor
MSRP: $92.66
$9149
Save $1.17
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 25
RAYBESTOS 981914R Part Description
Manufacturer
Product Description

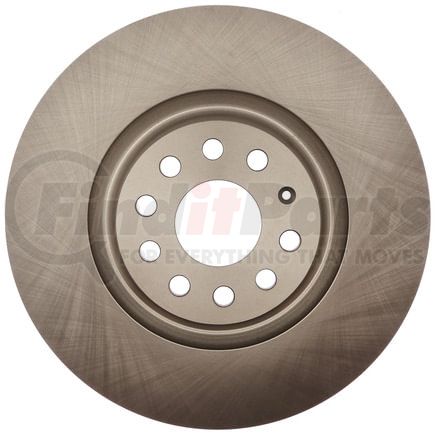

Raybestos R-Line Brake Rotor
Application Summary
2023-2018 Volkswagen Tiguan Front, 2022-2019 Volkswagen Jetta Front, 2023-2019 Audi Q3 Front, 2021-2016 Volkswagen GTI Front, 2015 Volkswagen Golf Front, 2019-2015 Volkswagen Golf R Front, 2021-2019 Volkswagen Arteon Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 981914R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.559 IN |
| Center Hole Diameter | 65 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.063 IN |
| Discard Thickness | 27 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.11 IN |
| Inside Diameter | 206 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.591 IN |
| Mounting Bolt Hole Diameter | 15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 13.386 IN |
| Outside Diameter | 340 MM |
| Overall Height | 1.976 IN |
| Overall Height | 50.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213299250 |
RAYBESTOS 981914R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH423656 |
| Advance Auto Parts | YH423656P |
| Audi | 5QN615301A, 4M0615301BJ, 5Q0615301F, 5Q0615301G, 5Q0615301H, 5Q0615601D, 5Q0615601E, 5WA615301, 5WA615301B, 83A615301D, 83A615302D |
| AutoZone | 78032DG, 78032DL |
| Brembo | 09.C306.11, 09.C306.1S, 09.C306.1X |
| CENTRIC | 120.33144, 121.33144, 125.33144, 125.33144CRY, 126.33144CSL, 126.33144CSR, 126.33144SL, 126.33144SR, 127.33144L, 127.33144R, 128.33144CL, 128.33144CR, 128.33144L, 128.33144R, 320.33144, 320.33144C |
| Centric Parts | 120.33144, 121.33144, 125.33144, 125.33144CRY, 126.33144CSL, 126.33144CSR, 126.33144SL, 126.33144SR, 127.33144L, 127.33144R, 128.33144CL, 128.33144CR, 128.33144L, 128.33144R, 320.33144, 320.33144C |
| Dura Corp | BR901686, BR901686-01 |
| DuraGo | BR901686, BR901686-01 |
| Dynamic Friction Company | 604-74034 |
| NAPA BRAKES | SDK6675 |
| POWERSTOP | EBR1497EVC |
| Qualis | 45882 |
| TopNotch | TN981914GEO |
| VOLKSWAGEN | 1K0615301AD, 5Q0615301G |
| Volkswagen | 3C0615301C, 3C0615301D |
| Wagner Brake | BD180806E |
RAYBESTOS 981914R Fits Vehicles
- Seat Tarraco (2019-2020)
- Volkswagen Tiguan Limited (2018)
- Volkswagen Golf SportWagen (2018-2019)
- Volkswagen Golf Alltrack (2018-2019)
- Audi RS3 (2023-2024)
- Volkswagen Passat (2009-2010)
- Volkswagen CC (2009-2017)
- Audi A3 Quattro (2019-2020, 2022-2025)
- Audi Q3 (2019-2025)
- Audi A3 (2014, 2019-2020, 2022-2024)
- Volkswagen Arteon (2019-2023)
- Volkswagen Jetta (2019-2025)
- Volkswagen Tiguan (2018-2024)
- Volkswagen Golf R (2015-2019, 2022-2024)
- Volkswagen GTI (2015-2024)
- Audi S3 (2014-2020, 2022-2025)
- Volkswagen Golf (2015-2017, 2019-2021)
