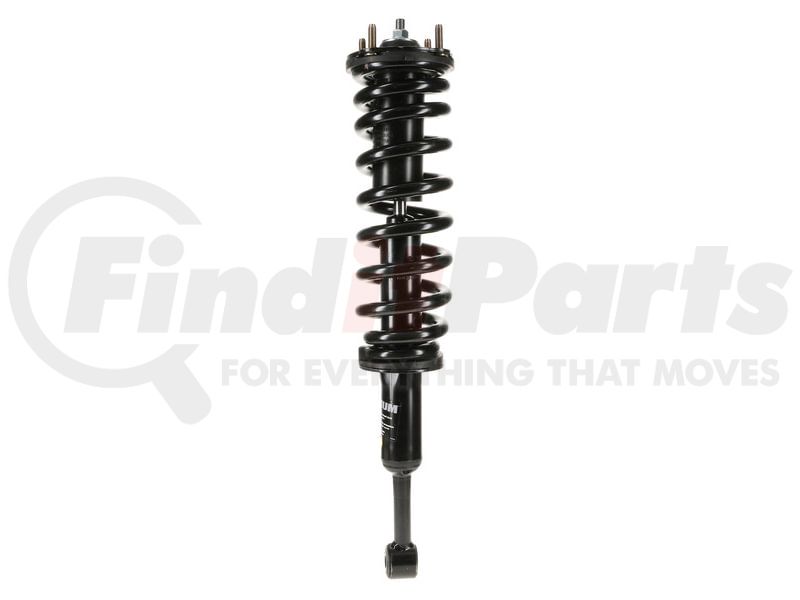

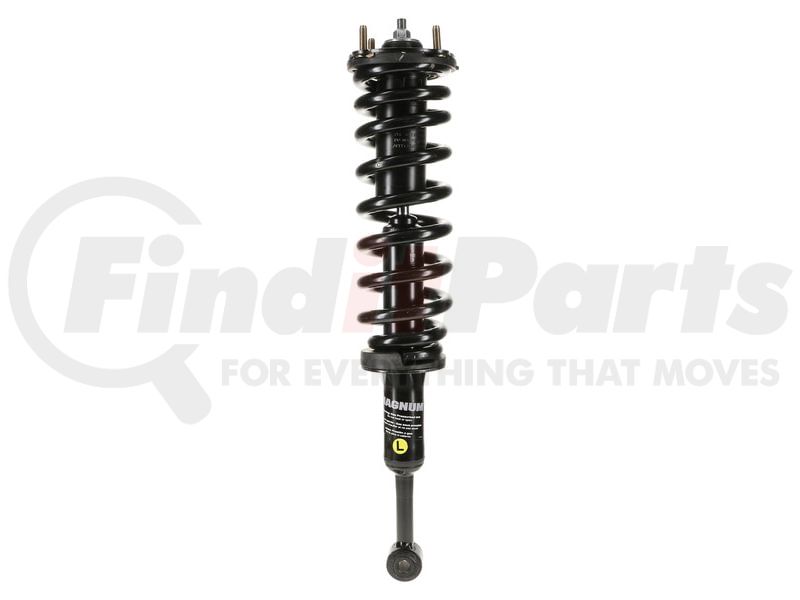

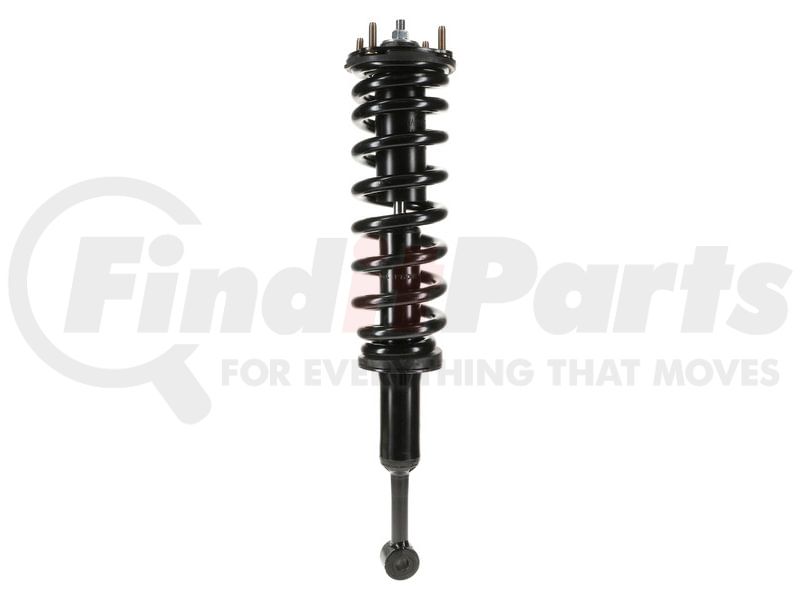

Monroe 153032L - Magnum Loaded Assembly Suspension Strut and Coil Spring Assembly
$23849
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MONROE part description
Product Description
Magnum Loaded Assembly Suspension Strut and Coil Spring Assembly
Features & Benefits
- DESIGNED FOR TRUCKS -- Specifically designed for hardworking half-ton trucks that tow, haul, and plow
- HELPS CARRY THE LOAD -- Variable rate coil spring delivers a comfortable ride and maintains ride height for everyday driving conditions or supporting the load
- MAINTAINS VEHICLE CONTROL -- Acceleration Sensitive Damping (ASD) improves vehicle control over abrupt bumps, dips and potholes
- BUILT TO LAST -- Bearing with PTFE coating protects the rod guide to reduce damage to the seal and chrome piston rod provides durability and long service life
- IMPROVES PERFORMANCE -- Nitrogen gas-charge helps maintain tire to road contact for improved ride and handling by reducing aeration and shock fade
- REDUCES FRICTION -- Fluon-banded piston helps reduce friction between the piston and pressure tube to respond more quickly to changing road surfaces
- RESPONDS TO CHANGING CONDITIONS -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
- DUST BOOT/JOUNCE BUMPER -- Protective dust boot reduces dirt and moisture, while jounce bumper reduces severe suspension movement
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee. Visit Monroe.com for details.
Product Attributes
| Compressed Length | 17.76 IN |
| Extended Length | 23.52 in |
| Travel Length | 5.76 in |
| Body Length | 17.26 IN |
| Gas Charged | Yes |
| Parts Pack(s) | P01123 |
| Mounting Hardware Included | YES |
| Compressed Length | 451.1 MM |
| Extended Length | 597.4 MM |
| Travel Length | 146.3 MM |
| Body Length | 438.4 MM |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708809900 |
| Harmonized Tariff Code (Schedule B) | 8708801300 |
| Harmonized Tariff Code (HTS) | 8708801300 |
| UPC | 00048598223593 |
| VMRS Code | 016020001 |
| UNSPSC | 25172007 |
Part Interchanges
- Toyota 4851009Q50
- Toyota 4851009Q70
- Toyota 4851009Q80
- Toyota 4851009Q90
- Toyota 4851009Q92
- Toyota 4851009Q93
- Toyota 4851009Q94
- Toyota 4851009Q95
- Toyota 4851009Q97
- Toyota 4851009Q98
- Toyota 4851009R10
- Toyota 4851009R20
- Toyota 4851009R30
- Toyota 485108Z162
- Toyota 485108Z362
- Toyota 4853009M80
- Toyota 4853009M90
- Toyota 4853009N10
- Toyota 4853009N20
- Toyota 4853009N40
- Toyota 4853009N50
- Toyota 4853009N91
- Toyota 4853009N92
- Toyota 4853009N93
- Toyota 4853009N94
- Toyota 4853009N95
- Toyota 4853009N96
- FCS Auto Parts 2345558L
- FCS Auto Parts 1345558L
- KYB SR4466
- NAPA Shocks 153032L
- FCS 1345558L
- FCS 2345558L
- KYB SR4473K
- KYB SR4473
- KYB SRM4473
- FCS 1345978L
- Toyota 4851009897
Fits Vehicles
- Toyota Tundra (2007-2021)
