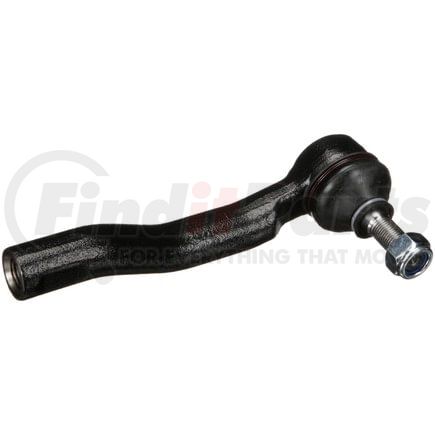

Name: Delphi TA5253 Tie Rod End
SKU: ta5253
Price: 25.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Left Outer
Item Grade	Standard Replacement
Length	231.00 MM
Color	Black
End 2 Gender	Female
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	53.5 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.866 IN
End 2 Thread Diameter	22.00 MM
Height	89.30 MM
Grade Type	Standard
Housing Material	Steel
36	1.240 IN
Tube Diameter	31.50 MM
Adjustable	No
Greasable	No
Weight	2.76 lb
Cone Outside Diameter	20.00 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
Length Stud Center to End	8.209 IN
Length Stud Center to End	208.50 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.630 IN
End 1 Thread Diameter	16.00 MM
Shank Length	20.00 MM
Stud Length	20.00 MM
Grade	Premium
Shank Length	0.787 IN
Stud Length	0.787 IN
662	0.787 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604287804
VMRS Code	015004020
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Toyota Sequoia (2008-2022)
Toyota Tundra (2007-2021)
