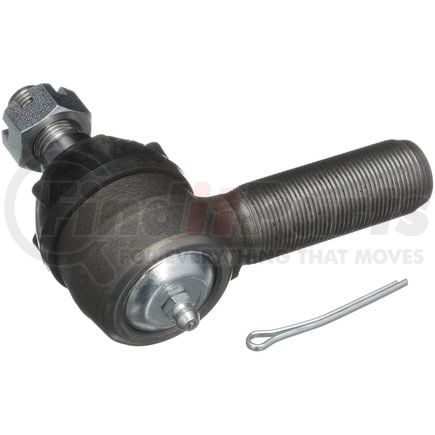

Name: Delphi TA5237 Tie Rod End
SKU: ta5237
Price: 40.49 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Left Outer
Item Grade	Standard Replacement
Length	110.00 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Width	43 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.875 IN
End 2 Thread Diameter	22.23 MM
Height	96.60 MM
Grade Type	Standard
Housing Material	Steel
36	0.875 IN
Tube Diameter	22.23 MM
Adjustable	No
Greasable	Yes
Weight	1.3 lb
Cone Outside Diameter	19.40 MM
Bearing Material	Plastic
End 2 Thread Direction	Counterclockwise (Left)
Stud Type	Threaded
Length Stud Center to End	3.425 IN
Length Stud Center to End	87.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 2 Threads Per Inch	18
End 1 Threads Per Inch	18
End 1 Thread Diameter	0.563 IN
End 1 Thread Diameter	14.29 MM
Shank Length	19.40 MM
Stud Length	19.40 MM
Grade	Premium
Shank Length	0.764 IN
Stud Length	0.764 IN
662	0.764 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604287316
VMRS Code	015004020
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Jeep Wagoneer (1974-1983)
Jeep J20 (1974-1988)
Jeep J10 (1974-1988)
Jeep Grand Wagoneer (1984-1991)
Jeep Cherokee (1974-1983)
