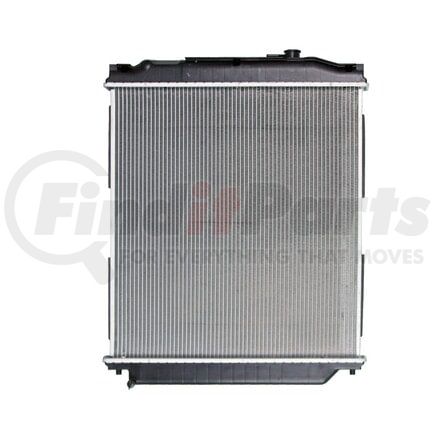

Name: Reach Cooling 42-10328 ISUZU FVZ34-6HK1-TCN 2012-
SKU: 4210328
Price: 411.49 USD
Availability: InStock

REACH COOLING part description

Make

Isuzu

Product Description

ISUZU FVZ34-6HK1-TCN 2012-

Application Summary

ISUZU FVZ34-6HK1-TCN 2012-

Features & Benefits

Our fin edges are folded for increased stability and heat disbursement properties.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Folded fin edges increase stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

Product Attributes

Core Thickness	1 7/8 IN
Inlet Diameter	2 IN
Core Row Quantity	1
Outlet Diameter	2 IN
Core Height	25 9/16 IN
Core Width	23 9/16 IN
Inlet Header Length	25.5 IN
Outlet Header Length	25.5 IN
Inlet Header Width	3" IN
Outlet Header Width	3" IN
Inlet Diameter	50.8 mm
Inlet Header Width	76.20 MM
Outlet Header Length	647.7 mm
Core Width	598.5 MM
Outlet Header Length	647.70 MM
Transmission Oil Cooler Included	No
Inlet Location	Upper Right
Engine Oil Cooler Included	No
Inlet Diameter	50.5 MM
Radiator Cap Included	No
Core Height	649.274 MM
Inlet Header Length	647.7 mm
Down Flow Or Cross Flow Type	Down Flow
Core Thickness	47.625 MM
Core Width	598.474 MM
Inlet Header Width	76.2 mm
Outlet Diameter	50.8 MM
Outlet Header Width	76.2 mm
Core Height	649.3 MM
Outlet Header Width	76.20 MM
Inlet Header Length	647.70 MM
Core Thickness	47.6 MM
Outlet Location	Lower Left
Outlet Diameter	51.5 MM
Frame Included	No

Additional Information

Warranty Special	12 Months
Country of Origin (Primary)	CN
UPC	06949521751869
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10328 Cross Reference

We have 3 alternatives for the 42-10328 by REACH COOLING:

Fits Vehicles

Isuzu NPR (2012)
Isuzu NPR-HD (2012)
Isuzu Reach (2012)
Isuzu NRR (2012)
Isuzu NQR (2012)
