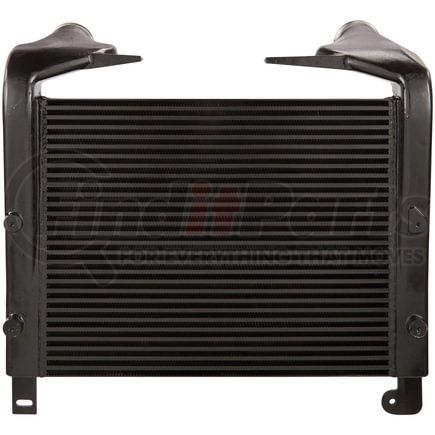

Name: Reach Cooling 61-1314 Charge Air Cooler
SKU: 611314
Price: 985.99 USD
Availability: InStock

REACH COOLING part description

Product Description

Charge Air Cooler

Application Summary

Mack:2008-2013 LEU

Features & Benefits

7 Layer Packaging: Each charge air cooler is packaged in a heavy duty, 7 layer corrugated box to ensure best protection during transit.
Header Plate Bond: We use a wider angle header plate bond to eliminate the risk of header cracking.
Reinforced Aluminum Alloy: Header reinforced with aluminum bronze to increase strength by 50%.
Deep Extrusion Header: Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion.
Reinforcement Rib: Tubes feature a reinforcing rib to increase material strength.
Reach charge air coolers are built to withstand the pressures of long hauls. From the product design to the package it is shipped in, every consideration is taken to ensure longevity and peak performance.
Flat Tube Wall Thickness: Flat tube wall thickness is no less than .55mm to maximize ability to withstand added pressure.

Product Attributes

Core Height	630 MM
Core Length	19.75 IN
Inlet Location	Upper Left
Inlet Outside Diameter	3 15/16 IN
Outlet Location	Upper Right
Outlet Outside Diameter	100 MM
Inlet Outside Diameter	100 MM
Core Height	24.812 IN
Down Flow Or Cross Flow Type	Cross Flow
Core Material	Aluminum
Core Thickness	70 MM
Core Length	502 MM
Core Thickness	2.75 IN
Outlet Outside Diameter	3 15/16 IN
Tank Material	Aluminum

Part Interchanges

REACH COOLING 61-1314 Cross Reference

We have 23 alternatives for the 61-1314 by REACH COOLING:

Fits Vehicles

Mack LEU (2008-2013)
