Name: Reach Cooling 42-10501 INTERNATIONAL PROSTAR 10-13
SKU: 4210501
Price: 1986.49 USD
Availability: InStock

REACH COOLING part description

INTERNATIONAL PROSTAR 10-13 W/ TOC ON GRILL SIDE. W/ FRAME. Same as 42-10500 W/O Frame. Compare

Make	International
Model	Prostar

Product Description

INTERNATIONAL PROSTAR 10-13

Application Summary

INTERNATIONAL PROSTAR 10-13

Features & Benefits

Folded fin edges increase stability and heat disbursement properties.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Our fin edges are folded for increased stability and heat disbursement properties.

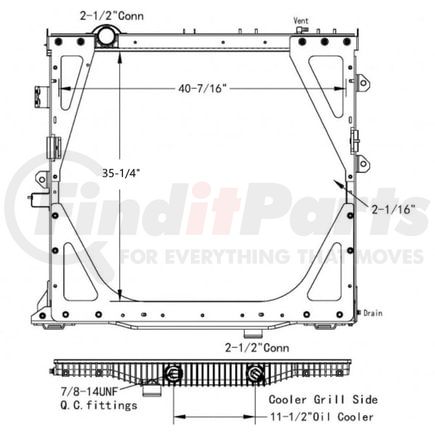

Product Attributes

Core Thickness	2-1/16 IN
Tank Material	Plastic
Core Row Quantity	2
Transmission Oil Cooler Distance between Fittings	11-1/2 IN
Core Height	35-1/4 IN
Inlet Diameter	2-1/2 IN
Outlet Diameter	2 1/2 IN
Core Width	40 7/16 IN
Core Material	Aluminum
Frame Included	No
Transmission Oil Cooler Type	11 1/2 In. Bottom tank
Down Flow Or Cross Flow Type	Down Flow
Outlet Location	Center Bottom
Core Thickness	52.39 MM
Transmission Oil Cooler Distance between Fittings	292.10 MM
Inlet Location	Top Left
Core Height	895 MM
Engine Oil Cooler Included	No
Inlet Diameter	64 MM
Radiator Cap Included	No
Transmission Oil Cooler Included	Yes

Additional Information

Country of Origin (Primary)	CN
Warranty Special	12 Months
UPC	06941099904296
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10501 Cross Reference

We have 53 alternatives for the 42-10501 by REACH COOLING:

Fits Vehicles

International ProStar (2010-2015)
International 8600 TranStar (2010-2015)
International 8500 TranStar (2010-2011)
