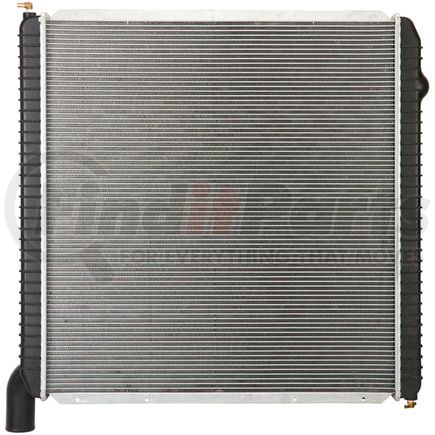

Name: Reach Cooling 42-10410 International 5000-5500-5600-5900 SERIES 04-09
SKU: 4210410
Price: 785.99 USD
Availability: InStock

REACH COOLING part description

International 5000/5500/5600/5900 SERIES 04-09

Make	International
Model	5,000,550,056,005,900
Year	2004, 2005, 2006, 2007, 2008, 2009

Product Description

International 5000-5500-5600-5900 SERIES 04-09

Application Summary

International 5000-5500-5600-5900 SERIES 04-09

Features & Benefits

Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our fin edges are folded for increased stability and heat disbursement properties.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Folded fin edges increase stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

Product Attributes

Core Width	29.312 IN
Core Material	Aluminum
Outlet Diameter	2 1/2 IN
Core Thickness	2 3/16 IN
Inlet Diameter	2.5 IN
Core Height	31.812 IN
Tank Material	Plastic
Frame Included	No
Core Row Quantity	2
Down Flow Or Cross Flow Type	Cross Flow
Inlet Header Width	84.124 mm
Outlet Diameter	63.5 MM
Core Height	808.024 MM
Core Width	744.524 MM
Inlet Header Length	828.675 mm
Outlet Header Width	84.124 mm
Core Width	745 MM
Outlet Header Length	32 5/8 IN
Outlet Header Length	828.7 MM
Outlet Header Width	3 5/16 IN
Inlet Diameter	64 MM
Core Thickness	55.549 MM
Inlet Header Length	828.7 MM
Outlet Location	Lower Right
Transmission Oil Cooler Included	No
Inlet Header Width	84.1 MM
Outlet Header Length	828.675 mm
Radiator Cap Included	Not Needed
Engine Oil Cooler Included	No
Inlet Header Length	32 5/8 IN
Inlet Header Width	3.312 IN
Outlet Header Width	84.1 MM
Outlet Diameter	63.5 MM
Inlet Location	Upper Left
Inlet Diameter	63.5 mm
Core Height	808 MM
Core Thickness	55.6 MM

Additional Information

Warranty Special	12 Months
Country of Origin (Primary)	CN
UPC	06941099903954
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10410 Cross Reference

We have 80 alternatives for the 42-10410 by REACH COOLING:

Fits Vehicles

International 5900i (2004-2012)
International 5600i (2003-2012)
International 5500i (2003-2012)
International 2674 (2002-2003)

Founded in 1999, Reach Cooling® is a worldwide leader in the manufacture and distribution of aftermarket cooling products for light, medium, and heavy duty truck applications. Its fasting-growing division is within its medium and heavy duty truck part sector, offering more than 30 HD condensers, more than 50 HD charge air coolers, and more than 100 HD radiators. All these products are manufactured to meet the highest OE standards to fit some of the most popular US truck makes, including Peterbilt, Mack, International, Isuzu, GMC, Ford, and Freightliner. Headquartered in Miami, Florida, Reach Cooling is fully committed to providing customers with only the best products, most competitive prices, and exceptional service.
