Name: Reach Cooling 61-1019 Charge Air Cooler
SKU: 611019
Price: 778.99 USD
Availability: InStock

REACH COOLING part description

Product Description

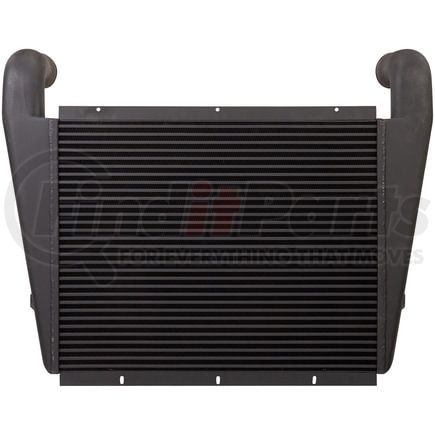

Charge Air Cooler

Application Summary

Mack:94-2007 CL/95 CS200P Mid-Liner/88 CS300P Mid-Liner/2003-2005 CX/2006 DM/85-86 MH/81-89 R

Features & Benefits

Deep Extrusion Header: Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion.
Flat Tube Wall Thickness: Flat tube wall thickness is no less than .55mm to maximize ability to withstand added pressure.
Reinforcement Rib: Tubes feature a reinforcing rib to increase material strength.
7 Layer Packaging: Each charge air cooler is packaged in a heavy duty, 7 layer corrugated box to ensure best protection during transit.
Header Plate Bond: We use a wider angle header plate bond to eliminate the risk of header cracking.
Reach charge air coolers are built to withstand the pressures of long hauls. From the product design to the package it is shipped in, every consideration is taken to ensure longevity and peak performance.
Reinforced Aluminum Alloy: Header reinforced with aluminum bronze to increase strength by 50%.

Product Attributes

Inlet Outside Diameter	100 MM
Inlet Location	Upper Left
Outlet Header Width	79 mm
Core Height	625 MM
Core Length	748 MM
Outlet Outside Diameter	100 MM
Outlet Header Length	618 mm
Outlet Location	Upper Right
Core Thickness	70 MM
Inlet Header Length	24 5/16 in
Inlet Header Width	79 mm
Core Row Quantity	1
Inlet Header Length	617.5 mm
Outlet Header Width	3.125 in
Type	Harmonica-shaped tube
Core Material	Aluminum
Outlet Outside Diameter	3.937 IN
Core Height	24.625 IN
Core Thickness	2.75 IN
Inlet Header Width	3.125 in
Outlet Header Length	24.312 in
Core Length	29.437 IN
Inlet Outside Diameter	3 15/16 IN

Additional Information

Country of Origin (Primary)	CN
UPC	06949521756093

Part Interchanges

REACH COOLING 61-1019 Cross Reference

We have 190 alternatives for the 61-1019 by REACH COOLING:

Fits Vehicles

Mack CX (2003-2005)
Mack RB (1992)
Mack DM (2006)
Mack CL (1994-2002, 2006-2007)
Mack RW (1985-1989)
Mack RS (1984-1987)
Mack MH (1985-1986)
Mack RD (1981-1989, 1993)
Mack R (1981-1989)
Mack CS300P Mid-Liner (1988)
Mack CS200P Mid-Liner (1995)
