REACH COOLING 61-1010 Charge Air Cooler

★★★★★ (0) Write a Review

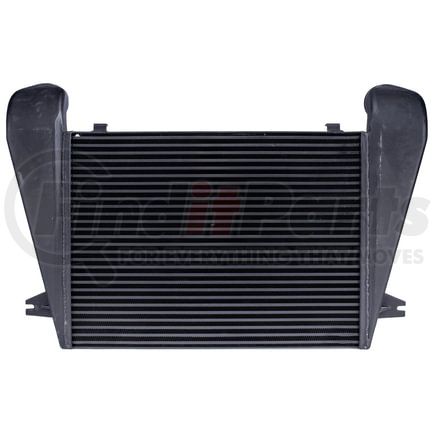

61-1010 by REACH COOLING - Charge Air Cooler
REACH COOLING
Tap to view 3 more

$1,022.49

Limited availability at this price!

In Stock

Get it by Thursday, Jan 15
No Hassle Return Policy Details
Does not qualify towards free shipping promotion. This item must be shipped LTL details
Orders placed over the weekend will ship the following business day

REACH COOLING 61-1010 Part Description

Manufacturer

REACH COOLING

Product Description

Charge Air Cooler

Application Summary

International:93 2574/90 8100/93-94 8200/94 8300/90-94 9400

Features & Benefits

  • Flat Tube Wall Thickness: Flat tube wall thickness is no less than .55mm to maximize ability to withstand added pressure.
  • 7 Layer Packaging: Each charge air cooler is packaged in a heavy duty, 7 layer corrugated box to ensure best protection during transit.
  • Reach charge air coolers are built to withstand the pressures of long hauls. From the product design to the package it is shipped in, every consideration is taken to ensure longevity and peak performance.
  • Reinforced Aluminum Alloy: Header reinforced with aluminum bronze to increase strength by 50%.
  • Deep Extrusion Header: Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion.
  • Reinforcement Rib: Tubes feature a reinforcing rib to increase material strength.
  • Header Plate Bond: We use a wider angle header plate bond to eliminate the risk of header cracking.

REACH COOLING 61-1010 Specifications

Product Attributes

Core Height 30.125 IN
Inlet Outside Diameter 102 MM
Outlet Outside Diameter 4 IN
Core Length 22 3/16 IN
Outlet Location Upper Right
Core Thickness 2 3/4 IN
Inlet Location Top Left
Outlet Outside Diameter 102 MM
Core Height 765 MM
Core Thickness 69.9 MM
Inlet Outside Diameter 4 IN
Core Length 563.6 MM
Type Harmonica-shaped tube

Additional Information

Country of Origin (Primary) CN
UPC 06949521796785

REACH COOLING 61-1010 Cross References

BrandPart Number
1674001C1, RCH611010
ACTIVE RADIATOR SUPPLY COMPANYNAV16412, NAV16412N, NAV16412R
Cancore IndustriesCAC133
Detroit Radiator CorporationNV4B
FreightlinerPPD709116
International Harvester (IHC)3E7137
KenworthPC2909, PC2964
Keystone Auto IndustriesHDH010224, IHDAC7B, DURIHDAC7B
NAVISTARPFC1674001C1, 1694793C92, 1694797C1, 169497C1, 1S0036570000, 1S3657, 2004399L1, 2004801C4, 2015965C1, 485-430-000, 485-430-2, 485430002, 4854312, 493-670-1, 4933303, 85103374, BTC-1133, INDAC4B, 1661763CL, 1698844C91, 1E3657G, 1S3657G, 4854302, 4854505002, 4933300003, DHTIH7B, 1.6948E+103, 1674000, 16740000, 1674000C1, 1694794C92, 1694796C92, 1S3595, 2017962C1, 2071962C1, 3E7137, 485-430-0003, 485430000, 485431-2, 4854501, 4854505001, 493330-4, 4933304, 681-501-02-01, DHT7B, IE3595, IE3834, 1655734-C1, 1694793C91, 1694794-C91, 1694794-C92, 1E3652, 1E3657, 2015966-C1, 2015966C1, 2502984C1, 37417B, 485-430-1, 4854305002, 4854310002, 4854500001, 493330-3, 4936700001, 85103373, CA2051, IE3656, INDAC-4B, RHT021, 1655734C1, 1698264C1, 1E3656, 485430-0001, 4854301, 6815010201, ABPN09BH9B, IE-3562, IE3657, IE4151, 1661963C1, 1674003C1, 1694794C91, 2310122, 4850800003, 4854300001, 4854300002, 493330-0004, C-NV4B, CNV4B, IE3562, INCA004B0TF, RHT006, UD02870, UD2870, 1661963-C1, 1691794C91, 169497-C1, 201596601, 485-43050-02, 4933300004, 7E5830, ABPN09BH5A, IE-3657, IE7137, 1.694793E+103, 1674001-C1, 17V9732, 1S3656, 485-430-0002, 4850803, 4854300003, 485431-0002, 493330-0003, 4936701, BT1133, BTC1133, WSR1133, 1.69E+103, 153656, 153657, 167401, 222050, 23701, 253140, 25501, 25503, 336204, PPD709273, PPD710416
NORTHERN RADIATOR222036, 222051, 222052, SCSI222051
OEM1.694793E+103, 153656, 1133, 153657, 1655734C1, 1655734-C1, 1661763CL, 1661963C1, 1661963-C1, 1674000, 16740000, 1674000C1, 1674001C1, 1674001-C1, 1674003C1, 167401, 1694793C91, 1691794C91, 1694793C92, 1694794-C91, 1694794C91, 1694794C92, 1694794-C92, 1694796C92, 1694797C1, 169497C1, 169497-C1, 1698264C1, 1698844C91, 17V9732, 1E3652, 1E3656, 1E3657, 1S0036570000, 1E3657G, 1S3595, 1S3656, 1S3657, 2004399L1, 2004801C4, 2015965C1, 201596601, 2015966C1, 1S3657G, 2015966-C1, 2017962C1, 2071962C1, 222036, 222050, 222051, 222052, 2310122, 23701, 2502984C1, 253140, 25501, 25503, 336204, 37417B, 3E7137, 44013503, 4401-3503, 441102, 441191, 441113, 4850800003, 4850803, 485430000, 4854300001, 485-430-000, 485430-0001, 4854300002, 485-430-0002, 4854300003, 485-430-0003, 485430002, 4854301, 485-430-1, 485-430-2, 4854302, 4854305002, 485-43050-02, 4854310002, 4854312, 485431-0002, 485431-2, 4854500001, 4854501, 4854505001, 4854505002, 4933300003, 493330-0003, 4933300004, 493330-0004, 4933303, 493330-3, 4933304, 493330-4, 4936700001, 4936701, 493-670-1, 6815010201, 681-501-02-01, 7E5830, 85103374, 85103373, ABPN09BH5A, ABPN09BH9B, BT1133, BTC1133, BTC-1133, CA2051, CAC133, CNV4B, C-NV4B, DHT7B, DHTIH7B, DURIHDAC7B, HDH010224, IE3562, IE-3562, IE3595, IE3656, IE3657, IE-3657, IE3834, IE4151, IE7137, IHDAC7B, INCA004B0TF, INDAC4B, INDAC-4B, NAV16412, NAV16412N, NAV16412R, NV4B, PC2909, PC2964, PPD709116, PPD709273, PPD710416, REA611010, REA61-1010, RHT006, RHT021, SCSI222051, SPI44013503, UD02870, UD2870, WSR1133, ZGBB-005, ZGBB005, 1153657, 655734C1
RADPRO LLCCAC133
Reach CoolingREA611010, REA61-1010
SERCKSRMIHC9C
SPI44013503, 4401-3503, SPI44013503
Spectra Premium4401-3503, SPI44013503, 44013503
THERMAL SOLUTIONS MANUFACTURING441102, 441113, 441191, HDH010224

REACH COOLING 61-1010 Fits Vehicles

  • International 8300 (1988-1994)
  • International 8200 (1990-1994)
  • International 2574 (1988-1994)
  • International 9400 (1990-1994)
  • International 8100 (1990-1994)
