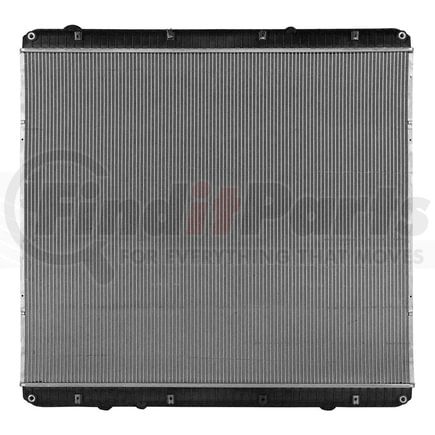

Name: Reach Cooling 42-10510 FREIGHTLINER-STERLING 114SD-W95 2012-2015
SKU: 4210510
Price: 1152.49 USD
Availability: InStock

REACH COOLING part description

FREIGHTLINER/STERLING 114SD/W95 2012-2015 W/O FRAMES, NO TOC/EOC Compare

Make	Freightliner
Model	114SD, W95
Year	2012, 2013, 2014, 2015

Product Description

FREIGHTLINER-STERLING 114SD-W95 2012-2015

Application Summary

FREIGHTLINER-STERLING 114SD-W95 2012-2015

Features & Benefits

Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Folded fin edges increase stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Our fin edges are folded for increased stability and heat disbursement properties.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

Product Attributes

Core Thickness	2 3/16 IN
Core Width	40.625 IN
Core Height	35 3/4 IN
Transmission Oil Cooler Distance between Fittings	12 IN
Core Height	908.1 MM
Core Width	1031.875 MM
Inlet Diameter	2.562 IN
Inlet Diameter	64.5 MM
Frame Included	No
Inlet Diameter	65.074 mm
Outlet Location	Bottom Left
Core Thickness	55.6 MM
Tank Material	Plastic
Core Thickness	55.549 MM
Outlet Diameter	63.5 MM
Transmission Oil Cooler Included	No
Inlet Location	Top Right
Radiator Cap Included	No
Core Material	Aluminum
Down Flow Or Cross Flow Type	Down Flow
Core Height	908.05 MM
Outlet Diameter	2 1/2 IN
Outlet Diameter	63.5 MM
Core Width	1032 MM
Engine Oil Cooler Included	No

Additional Information

Country of Origin (Primary)	CN
Warranty Special	12 Months
UPC	06941099903671
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10510 Cross Reference

We have 82 alternatives for the 42-10510 by REACH COOLING:

Fits Vehicles

Freightliner 114SD (2012-2015)
