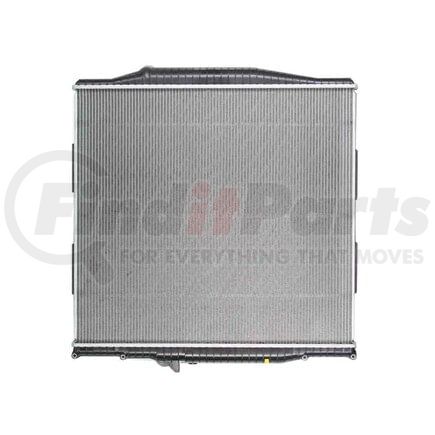

Name: Reach Cooling 42-10218 2006-2007 Mack CV713 GRANITE DUMP TRUCK
SKU: 4210218
Price: 705.99 USD
Availability: InStock

REACH COOLING part description

2006-2007 Mack CV713 GRANITE DUMP TRUCK

Specifications

Height	33 15/16"
Width	34 15/16"
Thickness	1 7/8"
Inlet	2 1/2"
Outlet	2 1/2"
Core Material	ALUMINUM
Tank Material	PLASTIC

Make	Volvo, Mack
Model	CT, CTP Granite
Year	2006, 2007

Product Description

2006-2007 Mack CV713 GRANITE DUMP TRUCK

Application Summary

2006-2007 Mack CV713 GRANITE DUMP TRUCK

Features & Benefits

Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our fin edges are folded for increased stability and heat disbursement properties.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Folded fin edges increase stability and heat disbursement properties.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

Product Attributes

Tank Material	Plastic
Outlet Diameter	2.5 IN
Core Height	33 5/16 IN
Core Width	35 IN
Transmission Oil Cooler Distance between Fittings	10 IN
Core Thickness	1.875 IN
Core Material	Aluminum
Inlet Diameter	2 1/2 IN
Core Width	888 MM
Frame Included	No
Core Width	889 MM
Outlet Diameter	63.5 MM
Transmission Oil Cooler Distance between Fittings	254 MM
Radiator Cap Included	No
Outlet Location	Lower Right
Inlet Diameter	63.5 MM
Core Thickness	47.625 MM
Core Height	846.1 MM
Transmission Oil Cooler Distance between Fittings	254 MM
Engine Oil Cooler Included	No
Transmission Oil Cooler Included	Yes
Outlet Diameter	64 MM
Down Flow Or Cross Flow Type	Down Flow
Core Height	846.124 MM
Inlet Diameter	63.5 mm
Core Thickness	48 MM
Inlet Location	Upper Right

Additional Information

Country of Origin (Primary)	CN
Warranty Special	12 Months
UPC	06949521784683
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10218 Cross Reference

We have 25 alternatives for the 42-10218 by REACH COOLING:

Fits Vehicles

Mack CV (2004-2008)

Founded in 1999, Reach Cooling® is a worldwide leader in the manufacture and distribution of aftermarket cooling products for light, medium, and heavy duty truck applications. Its fasting-growing division is within its medium and heavy duty truck part sector, offering more than 30 HD condensers, more than 50 HD charge air coolers, and more than 100 HD radiators. All these products are manufactured to meet the highest OE standards to fit some of the most popular US truck makes, including Peterbilt, Mack, International, Isuzu, GMC, Ford, and Freightliner. Headquartered in Miami, Florida, Reach Cooling is fully committed to providing customers with only the best products, most competitive prices, and exceptional service.
