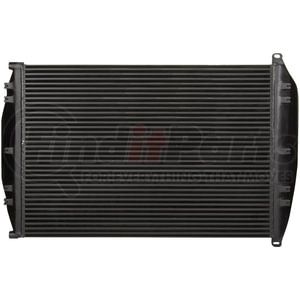

Name: Reach Cooling 42-10034 Ford-Sterling L- LTL9000- A-L Series- Silverstar 94-97
SKU: 4210034
Price: 758.99 USD
Availability: InStock

REACH COOLING part description

Ford/Sterling L, LTL9000, A/L Series, Silverstar 94-97

Specifications

Height	37 3/8 (Inches)
Width	33 3/4 (Inches)
Thickness	1 7/8 (Inches)
Row	2
Inlet	2 1/2 (Inches)
Outlet	2 1/2 (Inches)
Core Material	Aluminum
Tank Material	Plastic
TOC	NONE (Inches)
EOC	NONE (Inches)

Make	Ford, Sterling
Model	L, LTL9000, A, L, SILVERSTAR
Year	1994, 1995, 1996, 1997

Product Description

Ford-Sterling L- LTL9000- A-L Series- Silverstar 94-97

Application Summary

Ford-Sterling L- LTL9000- A-L Series- Silverstar 94-97

Features & Benefits

Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our fin edges are folded for increased stability and heat disbursement properties.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Folded fin edges increase stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

Product Attributes

Core Height	37.375 IN
Outlet Diameter	2 1/2 IN
Inlet Diameter	2 1/2 IN
Down Flow Or Cross Flow Type	Cross Flow
Core Material	Aluminum
Tank Material	Plastic
Core Row Quantity	2
Frame Included	No
Core Width	33 3/4 IN
Core Thickness	1 7/8 IN
Inlet Header Width	3 IN
Outlet Header Width	76.3 MM
Inlet Header Length	35.25 IN
Outlet Header Length	35 1/4 IN
Transmission Oil Cooler Included	No
Engine Oil Cooler Included	No
Core Thickness	47.6 MM
Outlet Header Width	3 IN
Inlet Location	Upper Left
Outlet Diameter	63.5 MM
Inlet Header Width	76.2 mm
Outlet Header Width	76.2 mm
Core Width	857.3 MM
Inlet Header Length	895 MM
Core Thickness	47.625 MM
Inlet Diameter	63.5 mm
Core Height	949.325 MM
Outlet Header Length	895.4 MM
Inlet Header Length	895.35 mm
Inlet Diameter	63.5 MM
Core Width	857.25 MM
Outlet Header Length	895.35 mm
Core Height	949 MM
Inlet Header Width	76.3 MM
Outlet Diameter	63.5 MM
Outlet Location	Lower Right
Radiator Cap Included	No

Additional Information

Warranty Special	12 Months
Country of Origin (Primary)	CN
UPC	06949521789329
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10034 Cross Reference

We have 77 alternatives for the 42-10034 by REACH COOLING:

Fits Vehicles

Ford LTLS9000 (1994-1997)
Ford LTLA9000 (1994-1997)
Ford LTA9000 (1996)
