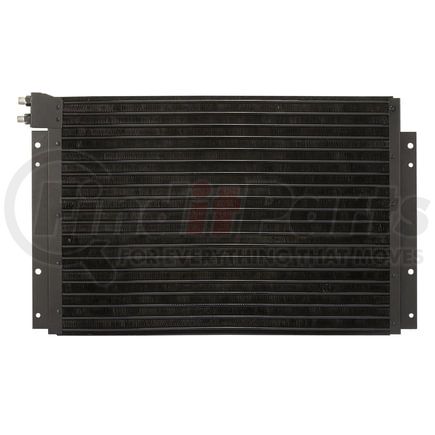

Name: Reach Cooling 32-0947 MACK CV SERIES 2003-2007
SKU: 320947
Price: 198.49 USD
Availability: InStock

REACH COOLING part description

Application Summary: Mack CV Series Granite (2007-03)

Features & Benefits

Heavy duty construction for lasting performance
Rigorous testing for pressure and thermal strength, vibration and corrosion resistance

Make	Mack
Model	CV, Granite

Product Description

MACK CV SERIES 2003-2007

Application Summary

MACK CV SERIES 2003-2007

Features & Benefits

Tube-and-fin configuration strictly follows OEM design to ensure maximum heat transfer and performance during pressure drop.
Reach condensers feature a parallel flow design to increase cooling efficiency.
All brackets and fittings are made with virgin aluminum to ensure purity of material and strength in brazing bond.
Our fin edges are folded for increased stability and heat disbursement properties.
All our tubes are zinc coated to better handle salt corrosion, especially for areas near the coast or with heavy snow.
Our tubes feature a 5mm fin height which allows for a greater cooling surface.
Reach condensers are designed and manufactured with OE performance and fit as our top priority. By utilizing topnotch materials, designs, and manufacturing techniques, we ensure that our condensers have the best quality and reliability.

Product Attributes

Inlet Fitting Thread Size	7/16 IN
Core Row Quantity	1
Outlet Fitting Type	Threaded
Core Width	21.187 IN
Inlet Diameter	7/16 IN
Core Height	29-15/16 IN
Inlet Fitting Type	Threaded
Core Thickness	5/8 IN
Outlet Fitting Thread Size	5/16 IN
Core Length	29.937 IN
Outlet Diameter	5/16 IN
Condenser Core Type	Parallel Flow
Inlet Location	Upper Left
Includes Drier	No
Core Thickness	15.9 MM
Core Width	538 MM
Outlet Fitting Gender	Male
Outlet Location	Upper Left
Mounting Hardware Included	Seals and Gaskets not included
Core Length	760 MM
Inlet Fitting Gender	Male

Additional Information

Warranty Special	12 Months
Country of Origin (Primary)	CN
UPC	06949521787943

Part Interchanges

REACH COOLING 32-0947 Cross Reference

We have 21 alternatives for the 32-0947 by REACH COOLING:

Fits Vehicles

Mack CV (2004-2007)

Founded in 1999, Reach Cooling® is a worldwide leader in the manufacture and distribution of aftermarket cooling products for light, medium, and heavy duty truck applications. Its fasting-growing division is within its medium and heavy duty truck part sector, offering more than 30 HD condensers, more than 50 HD charge air coolers, and more than 100 HD radiators. All these products are manufactured to meet the highest OE standards to fit some of the most popular US truck makes, including Peterbilt, Mack, International, Isuzu, GMC, Ford, and Freightliner. Headquartered in Miami, Florida, Reach Cooling is fully committed to providing customers with only the best products, most competitive prices, and exceptional service.
