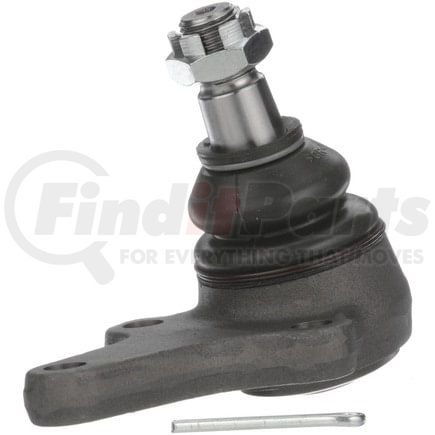

Delphi TC1724 - Ball Joint
$3799
MSRP: $50.49
Save: $12.50
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 1.260 IN |
| Maximum Outside Diameter | 32.00 MM |
| Color | Gray |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 128 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.976 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.866 IN |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.709 IN |
| Stud Tapered End 2 Diameter | 18 MM |
| 9213 | 0.787 IN |
| Stud Tapered End 1 Diameter | 20 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 80.00 MM |
| Length | 3.150 IN |
| Stud Thread Diameter | 0.63 IN |
| Height | 100.99 MM |
| Stud Thread Length | 22 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604275436 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Toyota Pickup (1984-1988)
