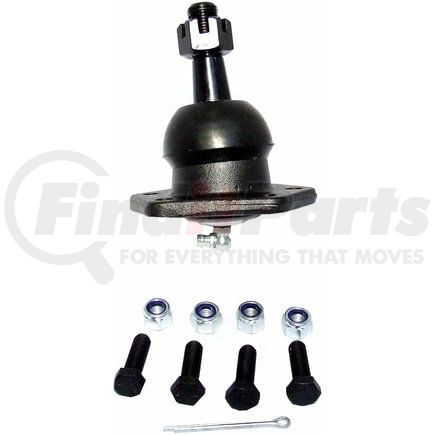

Delphi TC1610 - Ball Joint
$4099
MSRP: $55.52
Save: $14.53
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Upper |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 1.890 IN |
| Maximum Outside Diameter | 48.00 MM |
| Color | Black |
| Stud Thread Diameter | 0.625 IN |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 76.5 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 0.984 IN |
| Mounting Bolt Length | 25.00 MM |
| Washers Included | No |
| Height | 4.803 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greasable | Yes |
| 4966 | 1.122 IN |
| 839 | 13mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| 9202 | 0.313 IN |
| 9203 | 0.571 IN |
| Mounting Bolt Head Diameter | 14.50 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Threads Per Inch | 24 |
| Mounting Bolt Thread Length | 23.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| 9212 | 0.634 IN |
| Stud Tapered End 2 Diameter | 16.1 MM |
| 9213 | 0.815 IN |
| Stud Tapered End 1 Diameter | 20.7 MM |
| Stud Threads Per Inch | 18 |
| Length | 94.00 MM |
| Length | 3.700 IN |
| Stud Thread Diameter | 15.88 MM |
| Height | 122.00 MM |
| Stud Thread Length | 28.5 MM |
| Mounting Bolt Shank Diameter | 7.95 MM |
| 9207 | 0.910 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604278543 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- GMC P35/P3500 Van (1971-1974)
- GMC P25/P2500 Van (1971-1974)
- GMC G35/G3500 Van (1971-1974)
- GMC G25/G2500 Van (1971-1972)
- GMC C35/C3500 Pickup (1971-1974)
- GMC C25/C2500 Suburban (1971-1974)
- GMC C25/C2500 Pickup (1971-1974)
- Chevrolet P30 Van (1971-1974)
- Chevrolet P20 Van (1971-1974)
- Chevrolet G20 Van (1971-1972)
- Chevrolet G30 Van (1971-1974)
- Chevrolet C30 Pickup (1971-1974)
- Chevrolet C20 Pickup (1971-1974)
- GMC R3500 (1987-1991)
- GMC R2500 Suburban (1987-1991)
- GMC R2500 (1987-1989)
- GMC P3500 (1979-1999)
- GMC P35 (1975-1978)
- GMC P2500 (1979-1989)
- GMC P25 (1975-1978)
- GMC G3500 (1979-1996)
- GMC G35 (1975-1978)
- GMC G2500 (1994-1995)
- GMC C3500 (1979-1986)
- GMC C35 (1975-1978)
- GMC C2500 Suburban (1979-1986)
- GMC C25 Suburban (1975-1978)
- GMC C2500 (1979-1986)
- GMC C25 (1975-1978)
- Chevrolet R3500 (1989-1991)
- Chevrolet R30 (1987-1988)
- Chevrolet R2500 Suburban (1989-1991)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R20 (1987-1988)
- Chevrolet P30 (1975-1999)
- Chevrolet P20 (1975-1989)
- Chevrolet G30 (1975-1996)
- Chevrolet C30 (1975-1986)
- Chevrolet C20 Suburban (1971-1986)
- Chevrolet C20 (1975-1985)
